Can someone take the following pics and point out what I block off, cap and/or remove during my full non-seq conversion? It'd be a BIG help!
9BASE3 is offline
Reply
Old 04-20-2003, 06:22 PM
  #2
Senior Member
Thread Starter

9BASE3's Avatar

Join Date: Feb 2002
Location: Frederick MD
Posts: 6,331
Default

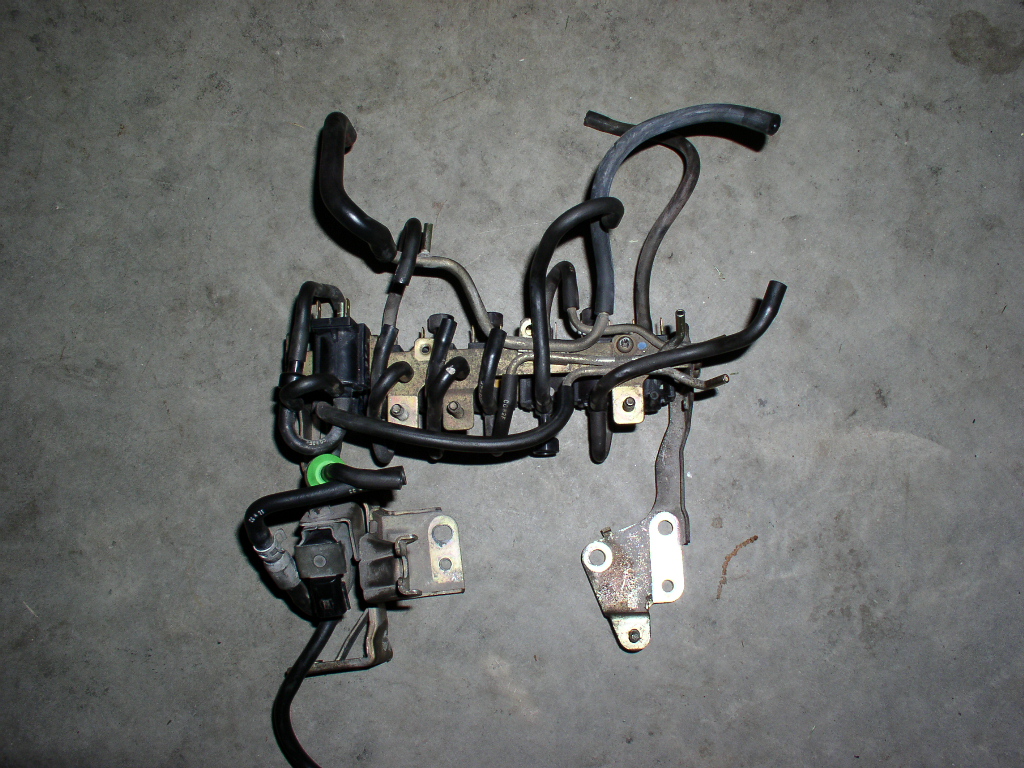

Rat's nest... Stays gone, right?
Attached Thumbnails Aight... Need Some Help... Yet Again-picture_003.jpg
9BASE3 is offline
Reply
Old 04-20-2003, 06:25 PM
  #3
Senior Member
Thread Starter

9BASE3's Avatar

Join Date: Feb 2002
Location: Frederick MD
Posts: 6,331
Default
UIM... I can block off that goddamn hose that went to the stock elbow, right?
9BASE3 is offline
Reply
Old 04-20-2003, 06:26 PM
  #4
Senior Member
Thread Starter

9BASE3's Avatar

Join Date: Feb 2002
Location: Frederick MD
Posts: 6,331
Default

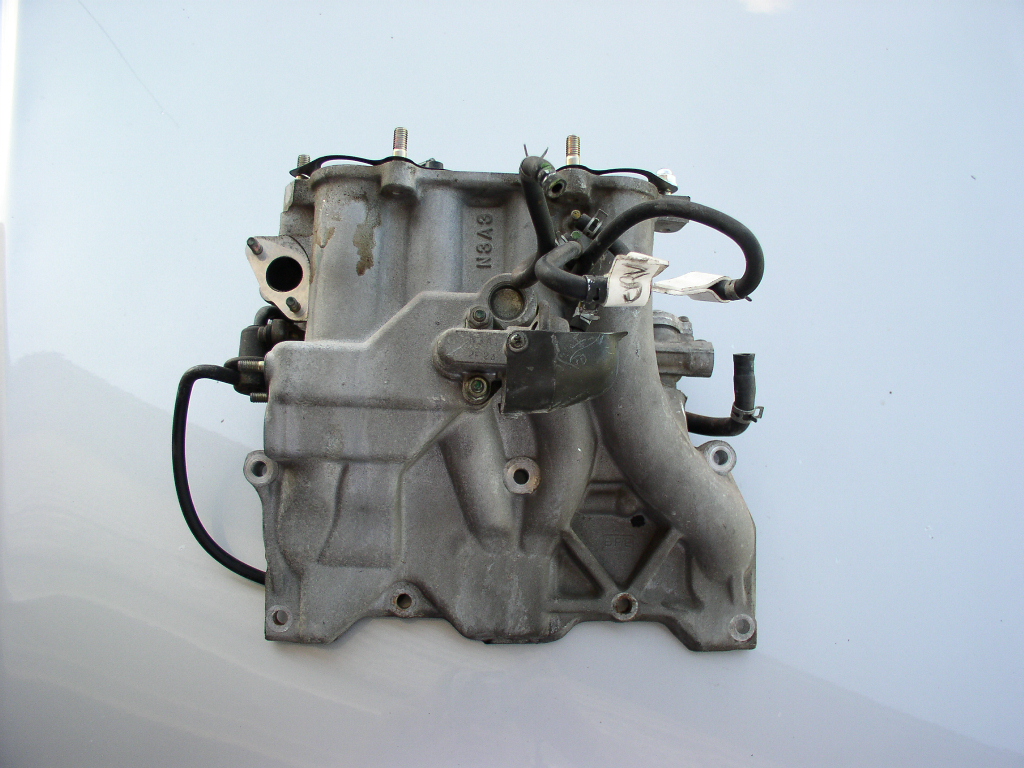

LIM... I have no clue what to do with this damn thing...
Attached Thumbnails Aight... Need Some Help... Yet Again-picture_009.jpg
9BASE3 is offline
Reply
Old 04-20-2003, 06:32 PM
  #5
Senior Member
Thread Starter

9BASE3's Avatar

Join Date: Feb 2002
Location: Frederick MD
Posts: 6,331
Default

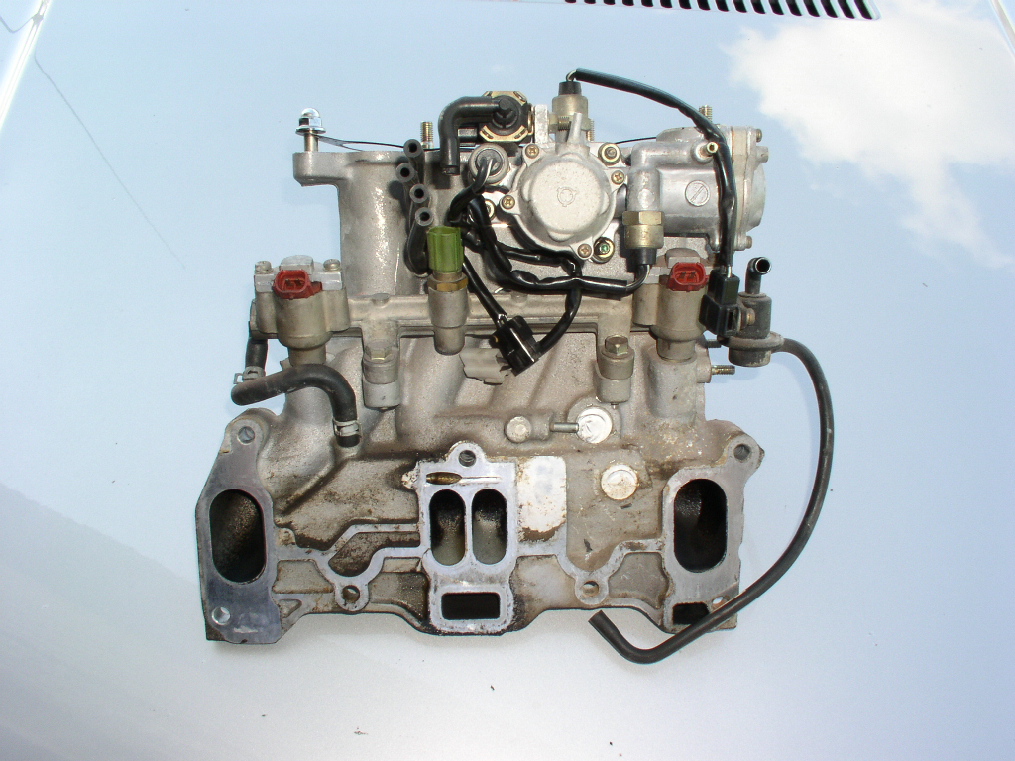

Other side of LIM
Attached Thumbnails Aight... Need Some Help... Yet Again-lim2.jpg
9BASE3 is offline
Reply
Old 04-20-2003, 06:33 PM
  #6
Senior Member
Thread Starter

9BASE3's Avatar

Join Date: Feb 2002
Location: Frederick MD
Posts: 6,331
Default

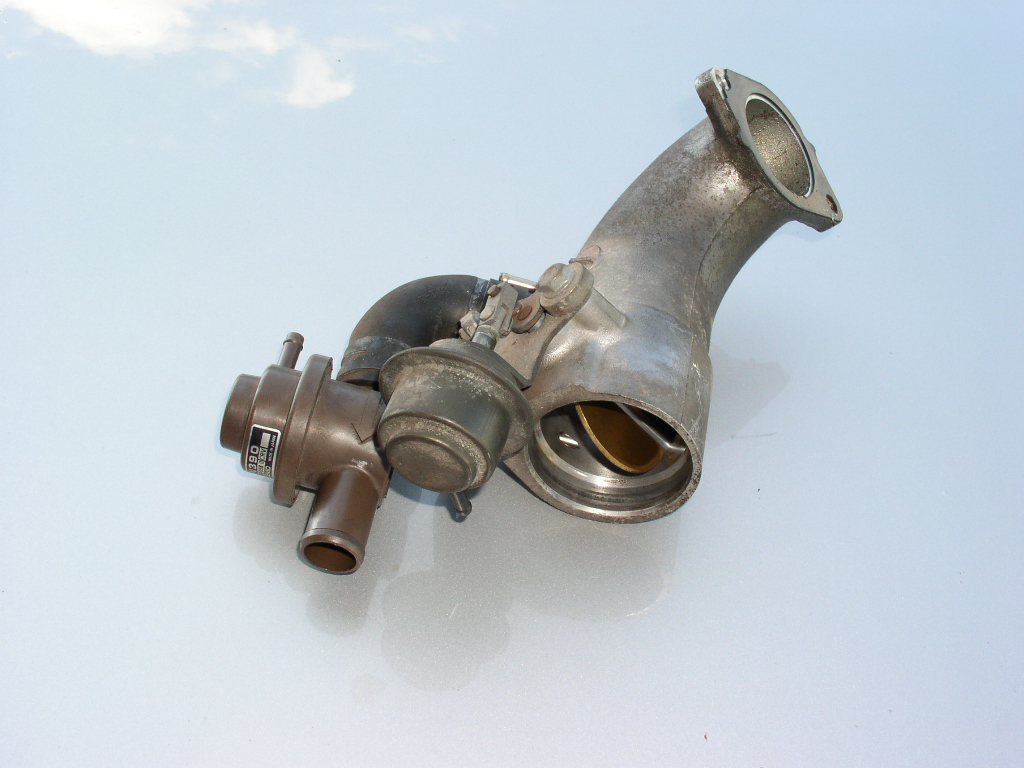

And this goddamn thing... Do I remove the butterfly?
Attached Thumbnails Aight... Need Some Help... Yet Again-picture_012.jpg
9BASE3 is offline
Reply
Old 04-20-2003, 08:06 PM
  #7
Senior Member

Fd3BOOST's Avatar

Join Date: Jun 2002
Location: La Plata, Maryland
Posts: 9,725
Default

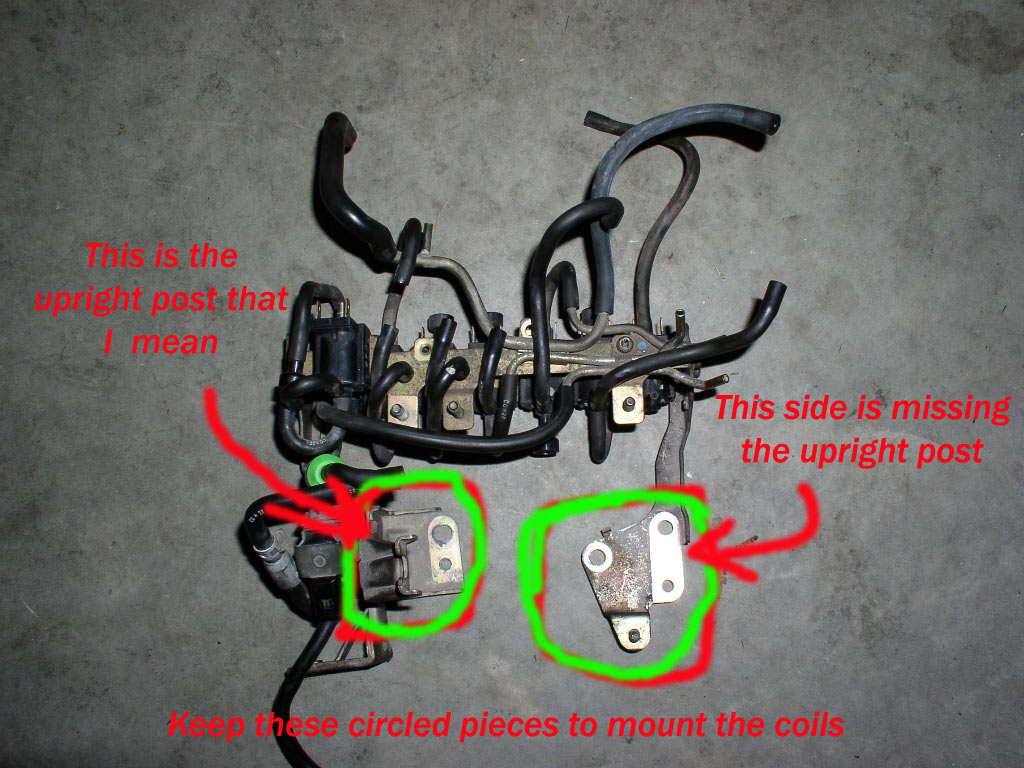

Attached Thumbnails Aight... Need Some Help... Yet Again-help_pic1.jpg
Fd3BOOST is offline
Reply
Old 04-20-2003, 08:08 PM
  #8
Senior Member

Fd3BOOST's Avatar

Join Date: Jun 2002
Location: La Plata, Maryland
Posts: 9,725
Default

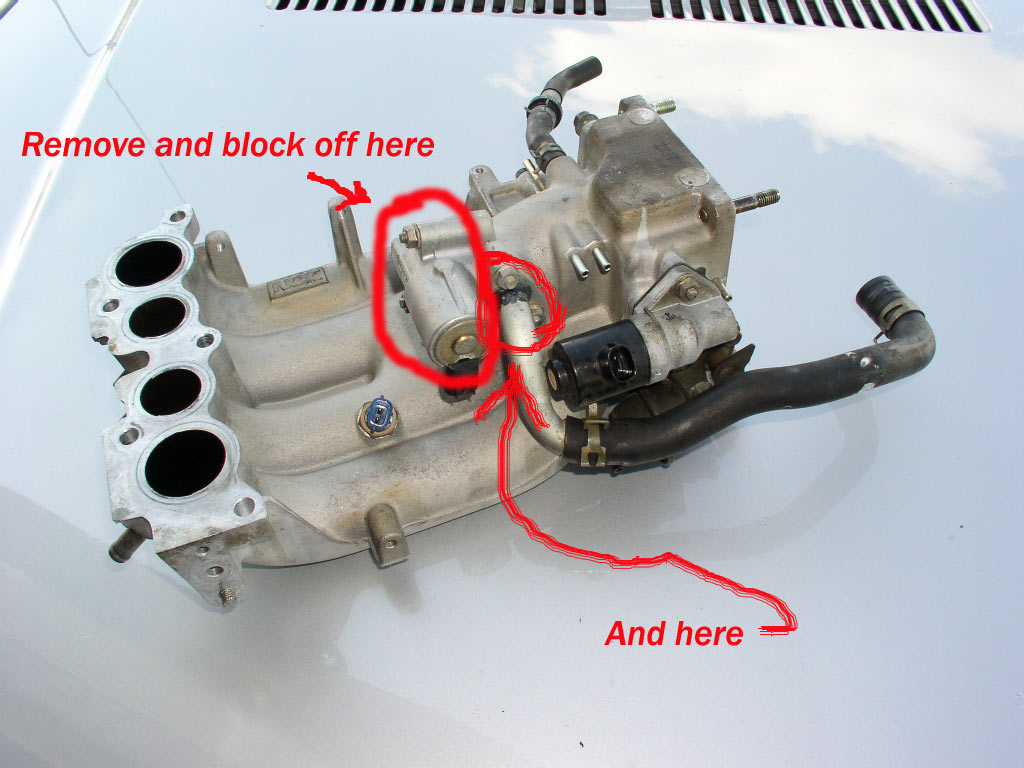

Attached Thumbnails Aight... Need Some Help... Yet Again-help_pic_2.jpg
Fd3BOOST is offline
Reply
Old 04-20-2003, 08:09 PM
  #9
Senior Member

Fd3BOOST's Avatar

Join Date: Jun 2002
Location: La Plata, Maryland
Posts: 9,725
Default

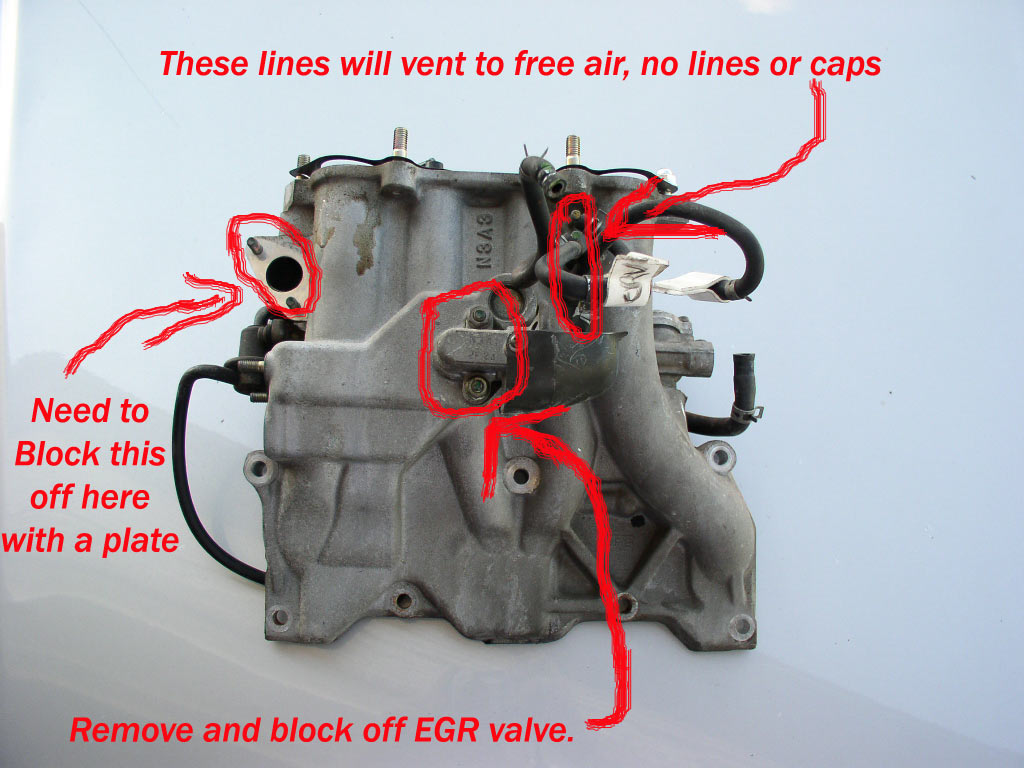

Attached Thumbnails Aight... Need Some Help... Yet Again-help_pic_3.jpg
Fd3BOOST is offline
Reply
Old 04-20-2003, 08:10 PM
  #10
Senior Member

Fd3BOOST's Avatar

Join Date: Jun 2002
Location: La Plata, Maryland
Posts: 9,725
Default

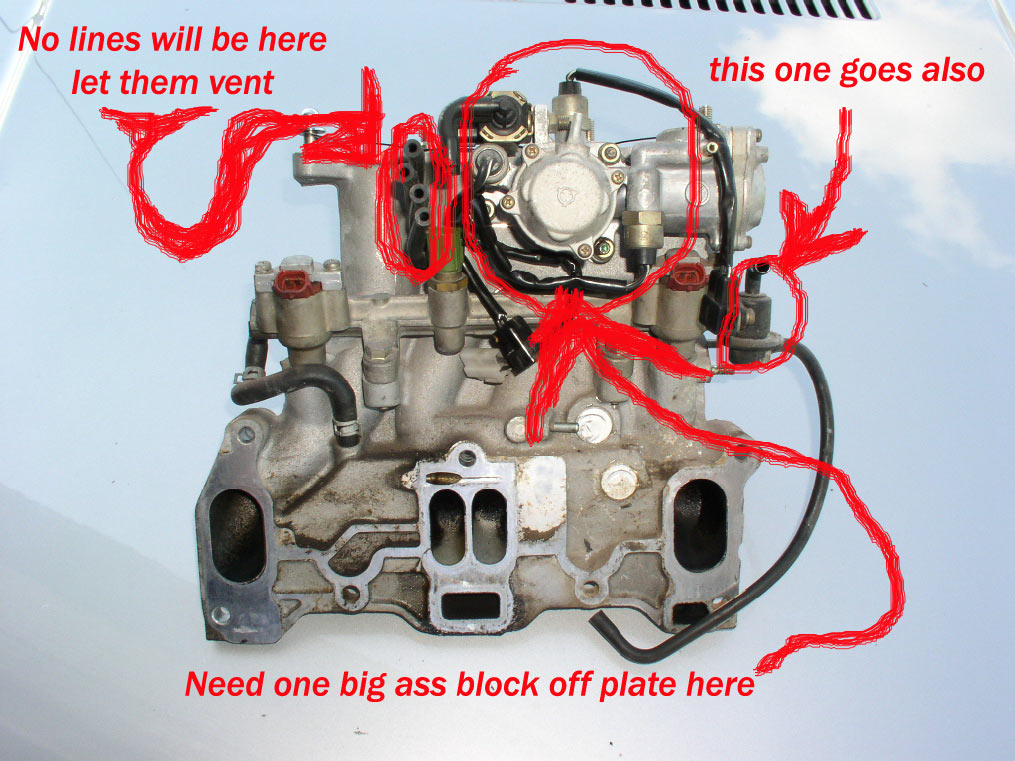

Attached Thumbnails Aight... Need Some Help... Yet Again-help_pic_4.jpg
