Wiring Pics!
#1
Here are some updates on the re-vamped wiring harness on the TII. (Unfortunately I sold it, but I am still assembling in my ****-Retentive overkill fashion)

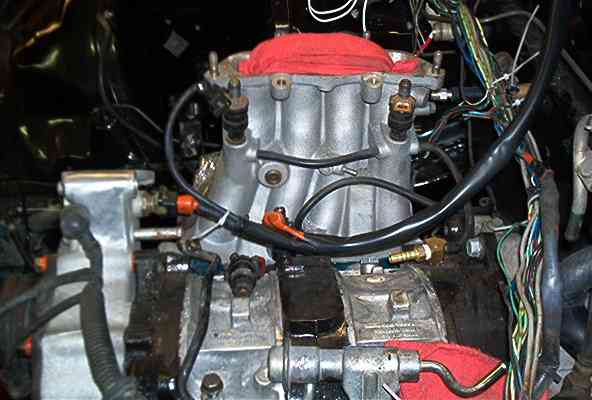

Here is the front rotor injector harness with the Water Temp sensor: The covering is 5./8" Vinyl covering (Same as Haltech uses), Injector plugs are MSD Part # 2400, Wire is Mil=spec Tefzel and the Orange Tape is Mil-Spec HIGH Temp Silicone, Self-Vulcaning tape.
Here is the front rotor injector harness with the Water Temp sensor: The covering is 5./8" Vinyl covering (Same as Haltech uses), Injector plugs are MSD Part # 2400, Wire is Mil=spec Tefzel and the Orange Tape is Mil-Spec HIGH Temp Silicone, Self-Vulcaning tape.
#2

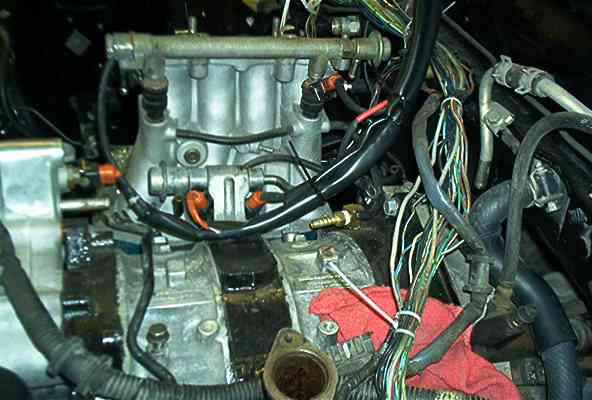

Here is the Front and Rear Rotoe Harness's The wire coming out of the rear harness(In Red) is part of the new Grounding circut. Remnants of the Old harness are visible on the right near the firewall.
#3

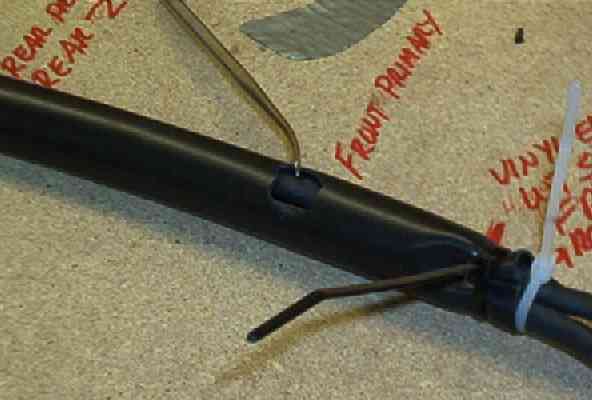

Here is a Partial assembly shot showing how I run a branch out of the main harness. The scibe is pointing to the hole I cut to backfeed the branch thru. I have since discovered/learned that cutting an X in the harness for the opening gives a nicer result, soo I will fix that Monday night
#8
YEP!!!!! The narness now runs along the Firewall, I moved the boost sensor, variable resistor and the injector resistor pak. I am debating on the AFM. Unfortunately that connector is NLA from Mazda; so If I did I wouls have to splice .
I am also grounding the **** out of this.
I am also grounding the **** out of this.
#9
Originally Posted by banzaitoyota' date='Mar 31 2003, 09:17 AM
YEP!!!!! The narness now runs along the Firewall, I moved the boost sensor, variable resistor and the injector resistor pak. I am debating on the AFM. Unfortunately that connector is NLA from Mazda; so If I did I wouls have to splice .
I am also grounding the **** out of this.
I am also grounding the **** out of this.
mike
