I started disassembling my turbo to port the wastegate. The problem is that it looks like it's not very accessible. Do I have to cut off the flap covering the wastegate and weld it ack on or is there some special technique to porting it? It's an s5 turbo by the way.



Thanks!
rmaiersg is offline   Reply With Quote
Old 03-25-2003, 05:52 PM   #2
Senior Member

Join Date: Nov 2001
Location: Rochester, NY
Posts: 1,231
Default

Dont cut anything! What you want to do, is remove the clip that holds the wastegate actuator rod on to the side of the wastegate flapper hinge. take the rod off and you will be able to have the wastegate open all the way giving easy access to the wastegate port. I recommend backcutting it as well as enlarging it.
Geoffman72 is offline   Reply With Quote
Old 03-25-2003, 06:04 PM   #3
Senior Member
Thread Starter

Join Date: Aug 2002
Location: One hour north of chicago (Mundelein to be exact)
Posts: 811
Default

WTF!!! The the part that flips to the flapper didn't open all the way b/c the housing held it back. I can't believe I didn't realize that. Anyhow, what's "backcutting" it?
rmaiersg is offline   Reply With Quote
Old 03-25-2003, 06:12 PM   #4
Senior Member

Join Date: Nov 2001
Location: Rochester, NY
Posts: 1,231
Default

Backcutting would be porting at an angle so basically;



say this is what a crosssection of the wastegate port looks like now



-------



-------



This would be with enlarging and backcutting



___/

__/

/





------







Except obviously it wouldnt be so extreme. Basically its just to let the exhaust flow into the wastegate area easier.





edit - that diagram blows. I'll draw something in MS paint.
Geoffman72 is offline   Reply With Quote
Old 03-25-2003, 06:20 PM   #5
Senior Member

Join Date: Nov 2001
Location: Rochester, NY
Posts: 1,231
Default

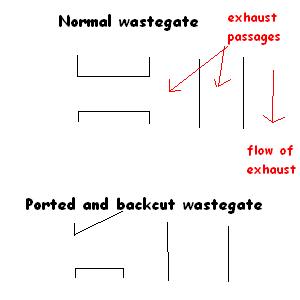

This should explain a bit better.
Attached Thumbnails
Wastegate Porting-wastegate.jpg
Geoffman72 is offline   Reply With Quote
Old 03-25-2003, 06:28 PM   #6
Senior Member

Join Date: May 2002
Location: California
Posts: 22,466
Default

you wanna port the whole passage
