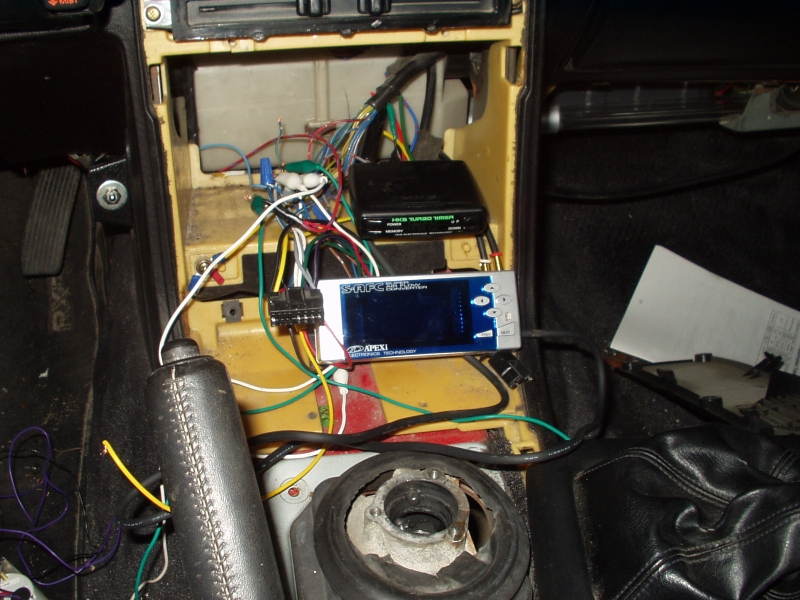

I bought an old school HKS turbo timer off of a friend a while back for my old car. I want to install it on my new TII but I don't remember what wires do what and what wires I should tap into. Does anyone know? It's the turbo timer in the picture, the little black thing.
Attached Thumbnails
Turbo Timer Install-turbo_timer___s_afc.jpg
rmaiersg is offline   Reply With Quote
Old 03-25-2003, 04:02 PM   #2
Senior Member
Thread Starter

Join Date: Aug 2002
Location: One hour north of chicago (Mundelein to be exact)
Posts: 811
Default

I just called up HKS USA and the wires on the timer are as follows.



Black - Ground

Blue - Accessories

Green - Ignition 1

Yellow - Ignition 2

Red - +12 constant

Gray - Brake



What colors on the car correspond to this?



Thanks a lot!
