T2 Wiring Help!
03-12-2003, 12:59 PM
#1
Senior Member
Thread Starter
Join Date: Aug 2001
Location: Pimp'n ain't E-Z! But driving ur FD makes it easier!
Posts: 2,705

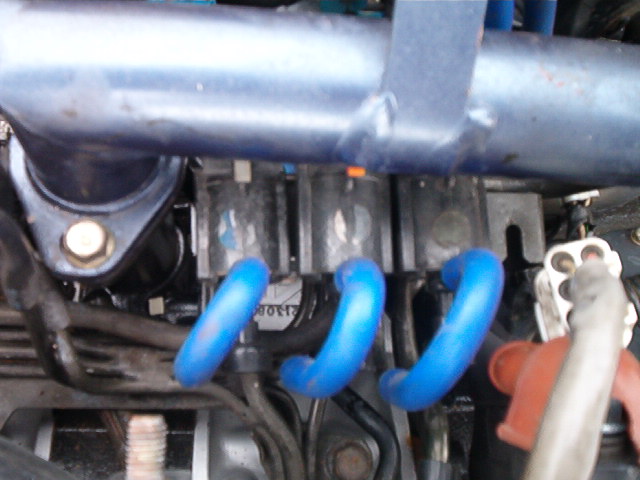

Ok, since it was warmer today, I thought I'd go double check all my wiring and such before the oil lines get here to be sure everything is good. Well, I cam across a few things...for the injectors, are the connectors color coded? I have 2 dark green ones and 2 gray ones, which is for primary & which is for secondary, I just want to double check on that. Also...do I really need all those solenoid relief valves & ****? PIC:
03-12-2003, 01:00 PM
#2
Senior Member
Thread Starter
Join Date: Aug 2001
Location: Pimp'n ain't E-Z! But driving ur FD makes it easier!
Posts: 2,705
This stock wiring harness is confusing as **** and brittle too! I can't wait for haltech..few more ?s....
I dont want to use the BAC valve...where can i get a blockoff plate? Where the **** is the connectors for the metering pump...I cant find them hidden in all this mess! Mazda should have color coded ****,lol....thanks for the help!
I dont want to use the BAC valve...where can i get a blockoff plate? Where the **** is the connectors for the metering pump...I cant find them hidden in all this mess! Mazda should have color coded ****,lol....thanks for the help!
03-12-2003, 01:59 PM
#4
Super Moderator
Join Date: Jul 2001
Location: NJ
Posts: 17,839
stock TII wiring harness is so simple.... the injector plugs only go on one way. you either need all the solenoids and emissions crap or NONE of it. i suggest leaving it on for now. i removed all that garbage on my old TII.... NO MORE VACUUM HOSES
03-12-2003, 03:58 PM
#6
Senior Member
Join Date: Oct 2001
Location: Peoria, AZ
Posts: 10,906
OHH!!! Polished toyz! Cool. Just remove all those solenoids and junk, makes it so much simplier/easier... PS they don't sell bac block off plates but i have one, I bought it and decided against scraping my bac so you wanna buy it off me? Sell it to you for $10 shipped thats 1/3 less than i got ripped off on it for...
03-12-2003, 04:25 PM
#7
Senior Member
Thread Starter
Join Date: Aug 2001
Location: Pimp'n ain't E-Z! But driving ur FD makes it easier!
Posts: 2,705

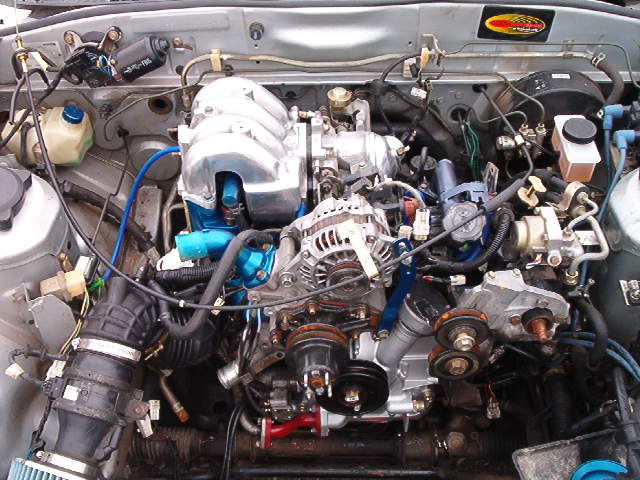

Yea...actually, i figured all the **** out like right after making this post. See...i got a confession to make, i was a lil intoxicated working on the motor the first time and didnt remember where half the **** went, but I found my "photo library" i made of everything and its all good now...i'll post a pic of the final product in a min...
and hey revvin, yea i'll take that plate, can we just send it w/ the exhaust when i get that from ya? Thanks man!
and hey revvin, yea i'll take that plate, can we just send it w/ the exhaust when i get that from ya? Thanks man!
03-12-2003, 07:37 PM
#10
Senior Member
Join Date: Oct 2001
Location: Peoria, AZ
Posts: 10,906
Originally Posted by Rotaryman88' date='Mar 12 2003, 05:25 PM
Yea...actually, i figured all the **** out like right after making this post. See...i got a confession to make, i was a lil intoxicated working on the motor the first time and didnt remember where half the **** went, but I found my "photo library" i made of everything and its all good now...i'll post a pic of the final product in a min...
and hey revvin, yea i'll take that plate, can we just send it w/ the exhaust when i get that from ya? Thanks man!
and hey revvin, yea i'll take that plate, can we just send it w/ the exhaust when i get that from ya? Thanks man!
