Starter How To Wire Need Help!
#1
hay guys im new to the fourms and new to rotary's 2 hahah and the problem im having is that i realy dont know how to wire the starter ok there is 2 blots and like a wire that comes off the starter and then theres like a thing were u up this black wire form the harness on the starter then there a grounding cable i guess were do i put that cuz we i go to crack the car it doesnt make a sound or try to turn over plzz help
#2
[quote name='mail-man' date='Jul 22 2005, 12:38 AM']hay guys im new to the fourms and new to rotary's 2 hahah and the problem im having is that i realy dont know how to wire the starter ok there is 2 blots and like a wire that comes off the starter and then theres like a thing were u up this black wire form the harness on the starter then there a grounding cable i guess were do i put that cuz we i go to crack the car it doesnt make a sound or try to turn over plzz help
[/quote]
+ from battery to the solenoid of the starter
- goes from battery to chassis to the longer of the 2bolts of the starter
then the 3rd small ~10gauge female connector wire to the male connector on the solenoid
If this doesnt work, have someone turn the key while using a fuse tester to make sure you have the right wire from the harness to starter. Otherwise have your battery and starter tested at a local parts store (usually free) and check all your fuses.
Post results.
[snapback]741431[/snapback]
[/quote]
+ from battery to the solenoid of the starter
- goes from battery to chassis to the longer of the 2bolts of the starter
then the 3rd small ~10gauge female connector wire to the male connector on the solenoid
If this doesnt work, have someone turn the key while using a fuse tester to make sure you have the right wire from the harness to starter. Otherwise have your battery and starter tested at a local parts store (usually free) and check all your fuses.
Post results.
#4

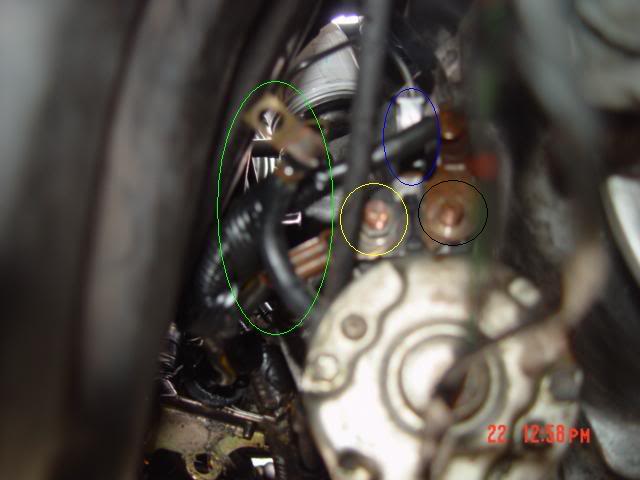

ok i went to see what i did and wut i have done so far is that i hooked up the long yellow and black wire to the screw on the left and the black wire to the one on the right then put the female on the male i have pics here
ok so this is a pictuere of how i got it on right now green i dont have hooked up and yellow i have hooked to the + and black i got hooked up to - and the blue is the female and the male thing

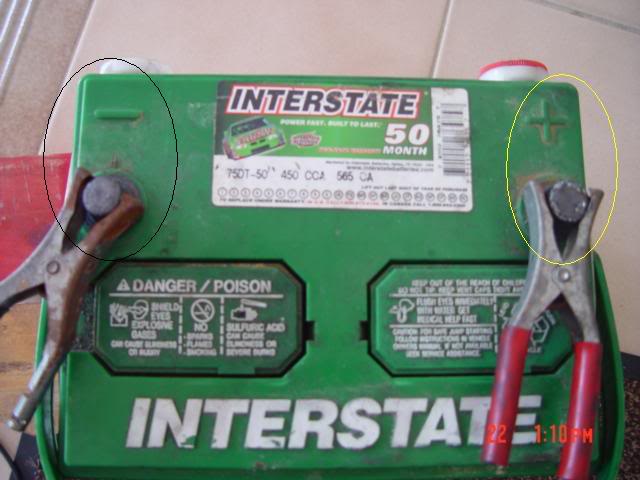

and this is the battery yellow is the lift scew on the starter or yellow circle on the top pic and black is hooked up to the right scew on the starter or the black circle
thanks for the help
ok so this is a pictuere of how i got it on right now green i dont have hooked up and yellow i have hooked to the + and black i got hooked up to - and the blue is the female and the male thing
and this is the battery yellow is the lift scew on the starter or yellow circle on the top pic and black is hooked up to the right scew on the starter or the black circle
thanks for the help
#5
look at the pic of the starter you posted and only the yellow and blue circles go to the starter, disregard the black circle, put the black circle back how it was (should look like copper ground strap bolted to the solenoid and into the starter), attach the blue circle wire which should be negative from battery to the long bolt holding your starter to the tranny( should be about 6-8 inch bolt with a 14mm head, yellow cirlce is correct if that wire comes from the + side of battery.......blue circle looks correct also......
#7
[quote name='mail-man' date='Jul 22 2005, 11:30 AM']ok so ur tilling me to leave the green alone and take off the black wire and blot it to the long starter blot right
[/quote]
ohhh Im sorry, the the green circle wire is the one to the long bolt and the blue and yellow circle are fine......
[snapback]741541[/snapback]
[/quote]
ohhh Im sorry, the the green circle wire is the one to the long bolt and the blue and yellow circle are fine......
#8
- from battery to the long bolt holding starter to tranny
+ from battery to the starter solenoid(your yellow circle in pic)
the female/male connector is fine
the black circle in your pic, put nut back on it and dont hook nothing up to it that wasnt already there.............
make better sense???
+ from battery to the starter solenoid(your yellow circle in pic)
the female/male connector is fine
the black circle in your pic, put nut back on it and dont hook nothing up to it that wasnt already there.............
make better sense???
