Rotaryman88

Hey, I've got my SE-X back in my driveway now, and I'm trying to hook the '88 SE o2 sensor back into the '91 T2 harness...here's a pic of where I think the sensor goes...I think I'll have to splice it....

Also, another note...will I need a knock sensor? Or does my car already have one, lol...who knows at this point?

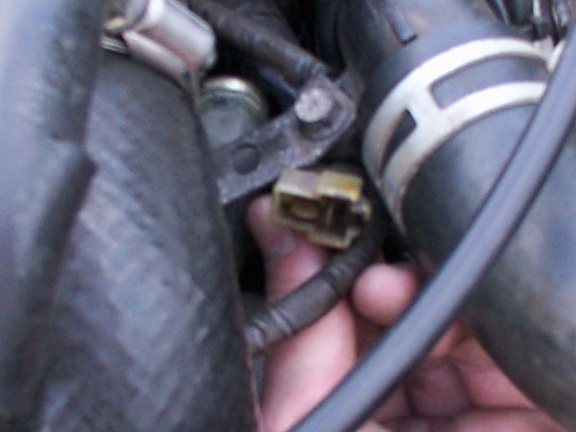

Here's the pic of where I THINK the o2 sensor goes...

13BAce

TII's come with a knock sensor. Most people looking for alot of performance usually don't bother with one.

Scott 89t2

the 02 is only one wire. that's not the right clip

j9fd3s

that clip is the jumper for the fuel pump. you are supposed to use it to check for leaks in the fuel system after you have it apart. the o2 sespr wire is black single wire and it is bundled with the acv wires and actually there is a little clip on the acv for the o2 sensor plug.



mike

vosko

yup

Scott 89t2

the fuel pump jumber is 2 female ends.. don't know what that is. BAC? it's in that area.
