2nd Generation Specific 1986-1992 Discussion

Power Windows Dont Work-what Should I Check?

Old 05-16-2004, 09:05 PM
  #1
Senior Member
Thread Starter

Join Date: Mar 2004
Location: Bahama(Durham), NC
Posts: 218
Default

well, i was considering changing the doors from my GXL and putting them into my T2 cause the windows dont work. the switches on both doors work fine- basing my opinion from external analysis, havent checked anything with like ohmeter or anything- but the windows just dont go up or down. the power mirrors work and the sunroof motor works. i cannot find the kick panel fuse cover in my car. if you guys have any idea what this might be caused by, let me know. im hoping its a fuse but, who knows. gimme some ideas..
NCTII87 is offline
Old 05-16-2004, 10:26 PM
  #2
Senior Member

Join Date: Mar 2003
Location: Sunny South Florida :)
Posts: 1,963
Default

ok, you need to pull the drivers side door panel, and take out the power window switch. carefully take the switch apart to see all the contacts inside, they'll probably be black from oxidation. Just take a screw driver and scrap them until they are shiny new, and your windows will probably work again.



Happened to me and that's what fixed it.



fyi, the all power for windows run though that switch (even if the passenger side switch is fine, it still won't work because it never sees the signal in the first place due to the corroded drivers side switch)



Hope that helps.
mazdadrifter is offline
Old 05-16-2004, 10:28 PM
  #3
Senior Member

Join Date: Mar 2003
Location: Sunny South Florida :)
Posts: 1,963
Default

also the fuses are to the back left of the clutch, if it'll have a fuse box looking cover on it. Use the diagraph on the lid to find your fuse, i think it's a 15 or 20 for the power windows.
mazdadrifter is offline
Old 05-16-2004, 10:35 PM
  #4
Senior Member

Join Date: Oct 2001
Location: Peoria, AZ
Posts: 10,906
Default

I have to do this on my t2. Passenger window doesn't work. Good tips!
1Revvin7 is offline
Old 05-16-2004, 10:40 PM
  #5
Senior Member
Thread Starter

Join Date: Mar 2004
Location: Bahama(Durham), NC
Posts: 218
Default

which is the fuse for the windows? i dont have the diagram from the kick panel anymore. l'd like to know which fuse on which row.
NCTII87 is offline
Old 05-17-2004, 01:29 AM
  #6
Senior Member

Join Date: Feb 2004
Location: Peoria, AZ
Posts: 1,505
Default

Speaking of this topic, my windows go up and down, but when they do, they do it kinda rough, when they hit the bottom they hit the bottom hard like a big clunk, do you think my windows are falling off the track or what?
drunkin_idiot is offline
Old 05-17-2004, 01:43 AM
  #7
Senior Member

Join Date: Sep 2003
Location: north NJ
Posts: 1,337
Default

power window lock??
FiKsE l2X SeVeN Jr is offline
Old 05-17-2004, 08:32 AM
  #8
Senior Member

Join Date: Mar 2004
Posts: 172
Default

Originally Posted by NCTII87' date='May 16 2004, 07:40 PM
which is the fuse for the windows? i dont have the diagram from the kick panel anymore. l'd like to know which fuse on which row.

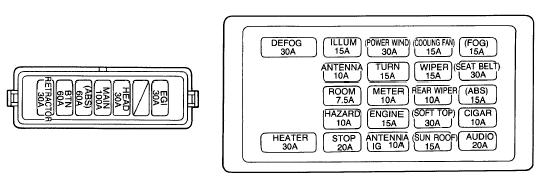

1989 Fuse chart
Attached Thumbnails Power Windows Dont Work-what Should I Check?-rentwreck.jpg
marcus7 is offline
Old 05-17-2004, 08:51 AM
  #9
Super Moderator

Join Date: Feb 2002
Location: Amityville, New York
Posts: 12,289
Default

if the fuse is blown there is reason why, I would do

further inspection
Rob x-7 is offline
Old 05-17-2004, 08:59 PM
  #10
Senior Member
Thread Starter

Join Date: Mar 2004
Location: Bahama(Durham), NC
Posts: 218
Default

anyone know if this is the same fuse diagram for the S4's?
NCTII87 is offline
