My 3700 Cfm Fan Setup

Old 01-24-2004, 06:47 PM
  #1
Member
Thread Starter

Join Date: Jan 2003
Posts: 53
Default

I posted these in another members post and the post was deleted. Not sure if it was sensorship or a hickup so I thought I'd post them here just in case.... don't want to offend anyone.

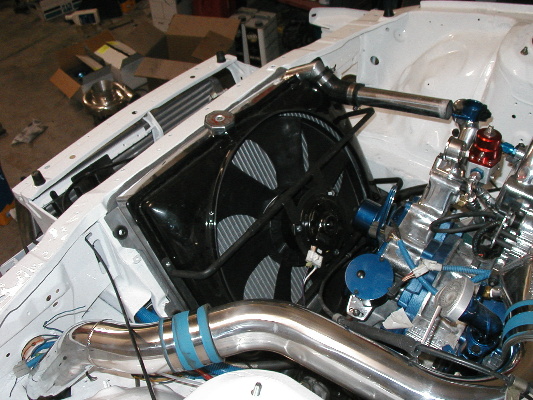

Anyway, the fan is from vintageair.com and it's the 18" monster fan which is rated to move 3700 CFM. This is by far the nicest fan that I have seen, but at a cost of twice the black magic, I'd hope so. The blades are effeciently shaped so there is actually very little noise despite the volume of air that it moves. Better yet, the associated shoroud fits the dimension of the FC radiator (mazdacomp in my case) perfectly. A little molding to get around the water inlets and viola! Looks like it came from the factory.



-Chris
Attached Thumbnails My 3700 Cfm Fan Setup-small_fan.jpg
carx7 is offline
Old 01-24-2004, 06:49 PM
  #2
Senior Member

Join Date: Dec 2002
Location: Cowgill , Missouri
Posts: 370
Thumbs down

oooOOoooo shiny.....



I....



Like.....











Sean
CrashFactory is offline
Old 01-24-2004, 06:50 PM
  #3
Member
Thread Starter

Join Date: Jan 2003
Posts: 53
Default

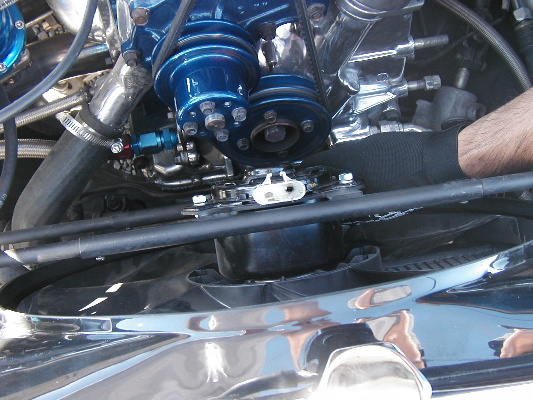

One more pic. Oh, I realize there are other fans, junkyard etc.... I didn't want them. I wanted something that look very professional and showy to an extent. I didn't polish, plate and re-paint my engine bay for weeks to ruin it with a crappy looking fan.
Attached Thumbnails My 3700 Cfm Fan Setup-small_fan2.jpg
carx7 is offline
Old 01-24-2004, 06:56 PM
  #4
Member
Thread Starter

Join Date: Jan 2003
Posts: 53
Default

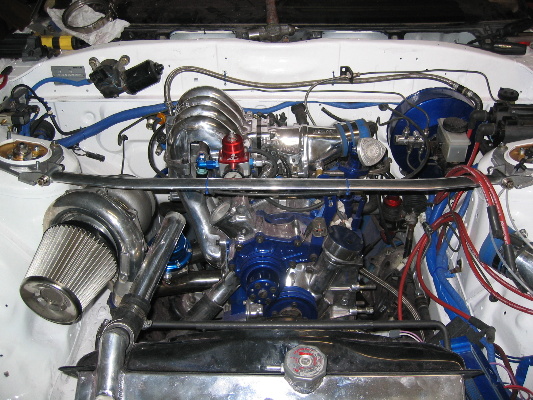

Here's another pic of the engine when it was "under construction"
Attached Thumbnails My 3700 Cfm Fan Setup-carx7engine_small.jpg
carx7 is offline
Old 01-24-2004, 07:06 PM
  #5
Senior Member

Join Date: Aug 2002
Location: Eastern PA
Posts: 1,801
Default

nice man, real nice!



3700 cfm!!! Its like this is the latest pissing contest! haha
FCmaniac is offline
Old 01-24-2004, 07:20 PM
  #6
Senior Member

Join Date: May 2002
Location: California
Posts: 22,466
Default

i like that fan
j9fd3s is offline
Old 01-24-2004, 07:30 PM
  #7
Senior Member

Join Date: Mar 2003
Location: ATX
Posts: 1,534
Default

Nice looking engine bay.
Nemesis is offline
Old 01-24-2004, 08:04 PM
  #8
Senior Member

Join Date: Sep 2002
Location: Vanderhoof,BC(Canada)
Posts: 5,542
Default

Thats a beautiful bay
Racer X is offline
Old 01-24-2004, 08:27 PM
  #9
Senior Member

Join Date: Oct 2001
Location: Peoria, AZ
Posts: 10,906
Default

You have the best efan setup I have ever seen. I just need to make a shroud like yours, but use those little flapper doors like Jim.
1Revvin7 is offline
Old 01-24-2004, 08:37 PM
  #10
Senior Member

Join Date: Dec 2002
Location: Wayne, NJ
Posts: 4,838
Default

Originally Posted by 1Revvin7' date='Jan 24 2004, 09:27 PM
You have the best efan setup I have ever seen. I just need to make a shroud like yours, but use those little flapper doors like Jim.
in that setup there is no need for flapper doors.



the flapper doors are used on perfectly flat shrouds because with them the flat part blocks all airflow.



with a concave (or convex depending on angle of view) shroud such as that there is air coming from all parts of the radiator at all times being pushed into the main fan area.



those flaps would be detrimental on a shroud setup such as this.



kevin.
