88Turbo

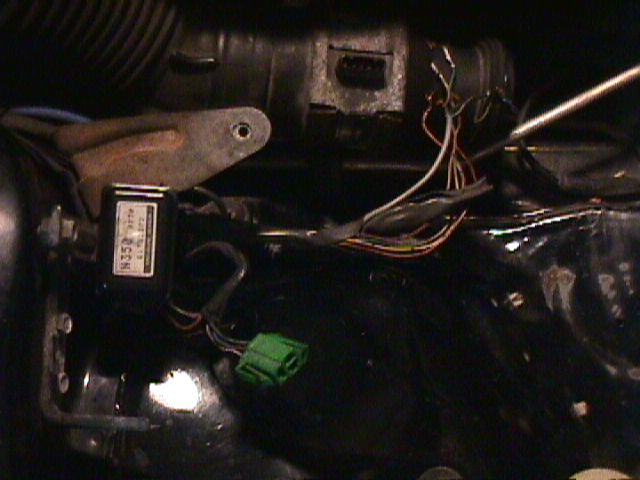

The previous owner cut the connector off the harness to the AFM. I am sorry for posting this topic again, but the only thing left is to purchase a whole new harness from Mazda. I know something else is missing, but I dont know what it is. Take a look at the pressure sensor, what is supposed to mount just beside it? Is there a difference in this part between the s4's and s5's? I have tried all the salvages in my area with no luck. I tried the fc3s.org site for the wire connection order: 1 grey, 2 greens, two browns. No luck. All I can find are one line diagrams with no details. Any ideas?

88Turbo

Does anyone have a pic of their s5 with the stock intake removed?

Scott 89t2

that green plug isn't for anything. that is the fuel pump jumper

Scott 89t2

wait you want the AFM order too?



this order



green/orange , brown/black, brown/ black , brown/white, gray.



now just let me figure out which way is which....

88Turbo

Oh thanks guys, you dont know how much help this is to me.

Scott 89t2

ok that is with clip facing down. looking into the harness plug





but I have 3 browns and one green in my manual hmm....

Scott 89t2

pic to show useless green plug

88Turbo

Cool, thanks Scott. That helps alot. My books dont show the order. What book do you have?

Scott 89t2

I have the 89 "wiring diagram" it comes with the FSM. but it is not online anywhere.



here is the plug

88Turbo

I am going to have to get a FSM, these cheap books dont help very much. Especially when you do your own work. Thanks again.
