loudazzrx7

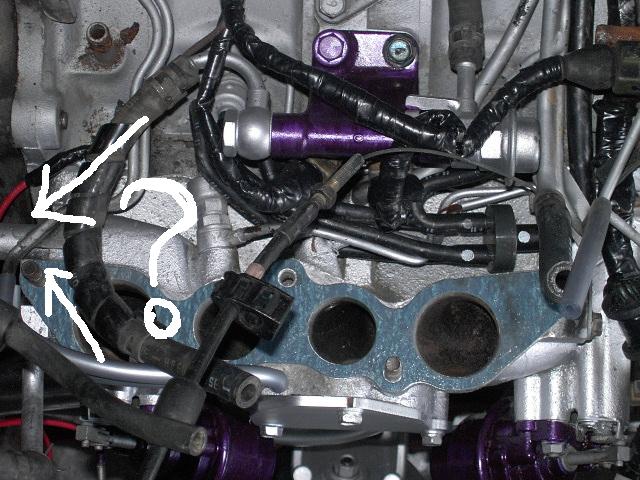

guys I need a couple of pics if you have a digital camera please hook me up.I need a [pic of the passenger side hoses and ****.And behind the motor.I cant figure out a couple of things.1--boostsensor vacumme line does it go to the vacume line on the intake manifold or the bottom of the vacume line on the charcoel canister.Also where does the hose go on the back of the motor passenger side corner of block?

loudazzrx7

FCmaniac

hose in your pic connects to the metal pipe on the firewall that routes to your brake booster... the boost sensor line connects to the UIM middle nipple right where it connects to LIM.

loudazzrx7

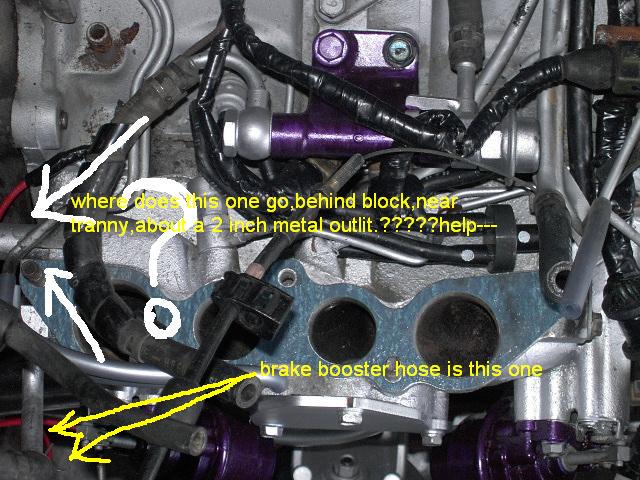

Thats not the one,your like an inch from the one I am talking about,brake booster hose connects to the long *** one coming off motor,but whats the one on the back of the motor,right next to it???????????????pretty big outlet

loudazzrx7

MazdaEnthused

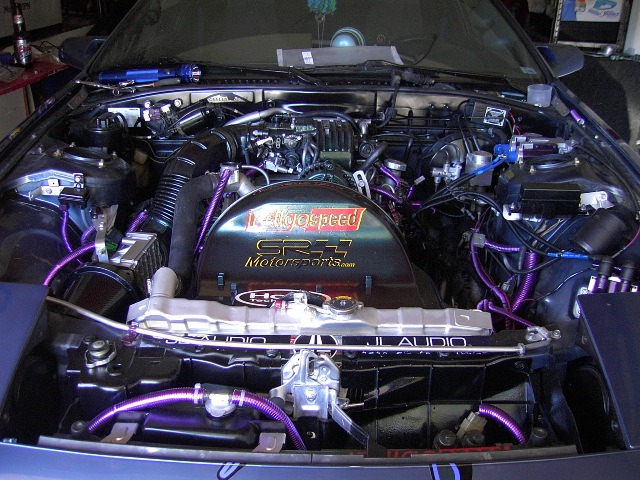

where you get the purple anodized stuff from

loudazzrx7

eld performace got the **** done for me----please some one anyone --go outside look at there motor on the backend passenger side and tell me where that damn hose goes---Please

MazdaEnthused

no accsess i'm at school

loudazzrx7

Ok,on your break--lol--go check it out for me

I am like 30 minutes from firing her up when i get this info.

1Revvin7

The "2in outlet near the tranny" is where the split air tube attches too, from the cat.. That other one you are pointing to is the vacuum boost port for the brake booster..
