2nd Generation Specific 1986-1992 Discussion

Correct alt swap infor?/

Old 11-30-2006, 07:32 PM
  #1
Senior Member
Thread Starter

Join Date: Jan 2005
Location: Greenwood AR
Posts: 831
Default

fc3s4utnv is offline
Old 11-30-2006, 08:33 PM
  #2
Super Moderator

Join Date: Feb 2002
Location: Amityville, New York
Posts: 12,289
Default

there is a sticky at the top of the 2nd gen page
Rob x-7 is offline
Old 11-30-2006, 08:47 PM
  #3
Senior Member
Thread Starter

Join Date: Jan 2005
Location: Greenwood AR
Posts: 831
Default

and I read it and couldnt find much info on the s4 to s5 swap, i dont want a s6, thx
fc3s4utnv is offline
Old 11-30-2006, 08:59 PM
  #4
Administrator

Join Date: Jul 2001
Location: Stuart, FL
Posts: 24,412
Default

i cant read that link or image or wutever, anyhow as mentioned in the pinned topic, check out this site for cross ref and re-wire info http://www.rx7.org/public/altxref.html
phinsup is offline
Old 11-30-2006, 09:03 PM
  #5
Senior Member
Thread Starter

Join Date: Jan 2005
Location: Greenwood AR
Posts: 831
Default

That hit the spot thank you
fc3s4utnv is offline
Old 11-30-2006, 09:13 PM
  #6
Super Moderator

Join Date: Feb 2002
Location: Amityville, New York
Posts: 12,289
Default

your link-no workie..



phins link- found in the topic that is the sticky
Rob x-7 is offline
Old 11-30-2006, 09:18 PM
  #7
Senior Member
Thread Starter

Join Date: Jan 2005
Location: Greenwood AR
Posts: 831
Default

Okay I read all that but it really doesnt say what to do. my car is s4 and i am wanting to put an s5 on bc the 70 amps thing really sucks.
fc3s4utnv is offline
Old 11-30-2006, 09:21 PM
  #8
Administrator

Join Date: Jul 2001
Location: Stuart, FL
Posts: 24,412
Default

To be honest the conclusion I came to after wavering on this subject is; find an alternator shop to rewire the bitch to 100 or better, there is a guy on ebay that will do it for a reasonable price.

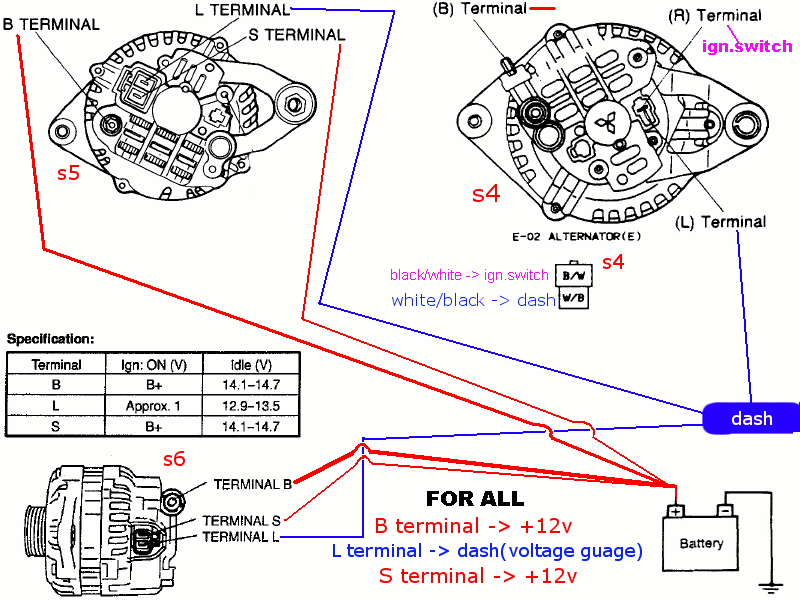

The link mentioned above does show you how to wire the 3-wire s5, s6 alt to constant bat so that it has a voltage input.
phinsup is offline
Old 11-30-2006, 09:25 PM
  #9
Senior Member
Thread Starter

Join Date: Jan 2005
Location: Greenwood AR
Posts: 831
Default

All I know is after reading everything I can on this stuff I am more confuesed than when I started working on it. Im with you but I drive mine everyday. Plus I was wanting to do the ultra cheapskate thing and just swap them, I got the s5 for freeeeeeee.
fc3s4utnv is offline
Old 11-30-2006, 09:46 PM
  #10
Senior Member

Join Date: Nov 2003
Location: Hell (Colorado School of Mines)
Posts: 517
Default

I swapped an s4 to an s5 and it was a peice of cake. One wire from the s5 goes straight to the charge post and the other one plugs back into the wire harness. I forget which one goes where and if it wasnt so damn cold, I'd go check now. I'll try to remember to look tomorrow.
CGeek2k is offline
