check valve direction

Reply Subscribe

Thread Tools

Search this Thread

Jul 30, 2007 | 08:45 PM

rotorpower27

Thread Starter

Junior Member

Joined: Jul 2007

Posts: 7

view image

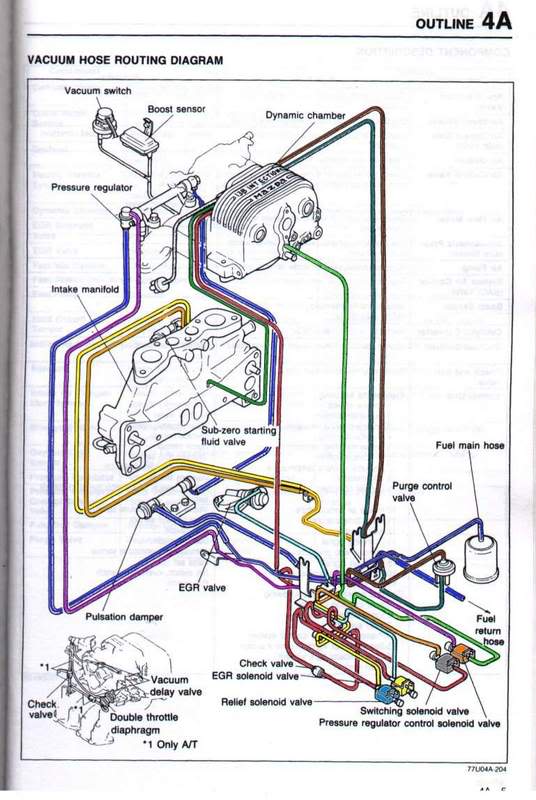

the check valve in the red vac line , which direction should the arrow point, or what is the direction of flow??

thank you

Name: 86-88vacuum.jpg
Views: 1486
Size: 71.6 KB

Name: 86-88vacuum.jpg
Views: 1486
Size: 71.6 KB

Jul 30, 2007 | 09:12 PM

turborotor

Senior Member

Joined: Nov 2001

Posts: 1,622

From: LA, USA

Sucking into the throttle body.

The EGR should not get any positive air or it will break the rubber diaphragm.
