My Overly Engineered 20b Sub Frame

Thread Tools

Search this Thread

Old 08-21-2003, 03:28 PM
  #1
Senior Member
Thread Starter

Dragon's Avatar

Join Date: Sep 2002
Posts: 2,550
Default
This is the subframe I made to make the 20B fit in my FD. You could drive a tank over it and I don't, well maybe It would bend.. but anyway I built it to take some power and also to reinforce the front frame rails since all the other 20B ones out there look pretty wussy. I also made it so when I make my aluminum oil pan I should be able to increase the oil capacity by an additional 2qts +

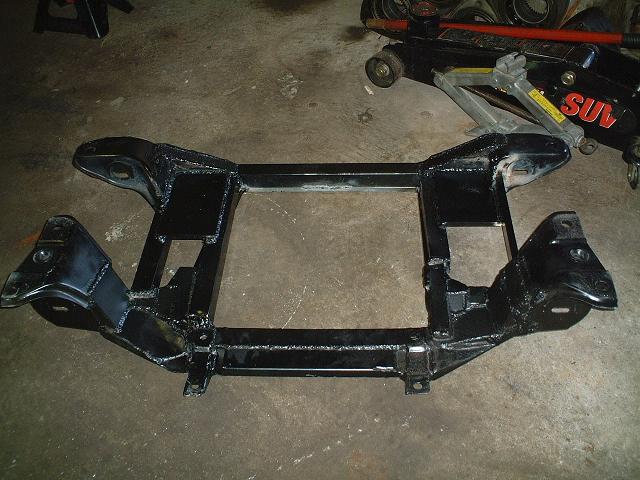

Attached Thumbnails My Overly Engineered 20b Sub Frame-subframe1.jpg
Dragon is offline
Reply
Old 08-21-2003, 03:29 PM
  #2
Senior Member
Thread Starter

Dragon's Avatar

Join Date: Sep 2002
Posts: 2,550
Default
#2

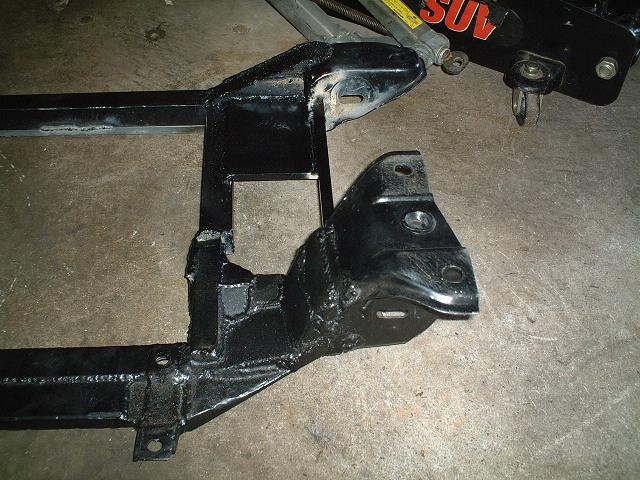

Attached Thumbnails My Overly Engineered 20b Sub Frame-subframe2.jpg
Dragon is offline
Reply
Old 08-21-2003, 03:30 PM
  #3
Senior Member
Thread Starter

Dragon's Avatar

Join Date: Sep 2002
Posts: 2,550
Default
#3

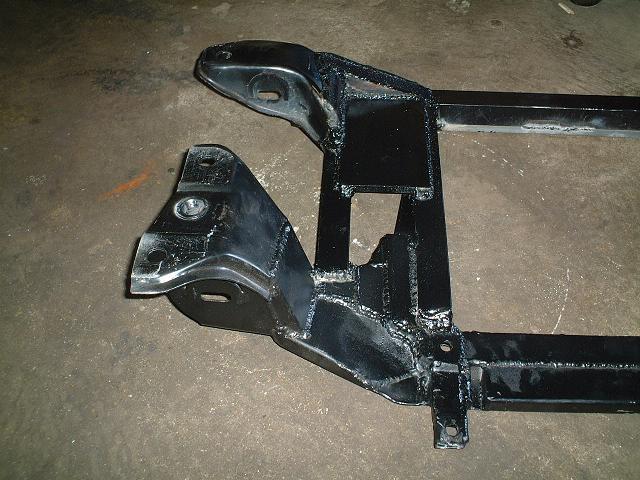

Attached Thumbnails My Overly Engineered 20b Sub Frame-subframe3.jpg
Dragon is offline
Reply
Old 08-21-2003, 03:31 PM
  #4
Senior Member
Thread Starter

Dragon's Avatar

Join Date: Sep 2002
Posts: 2,550
Default
#4

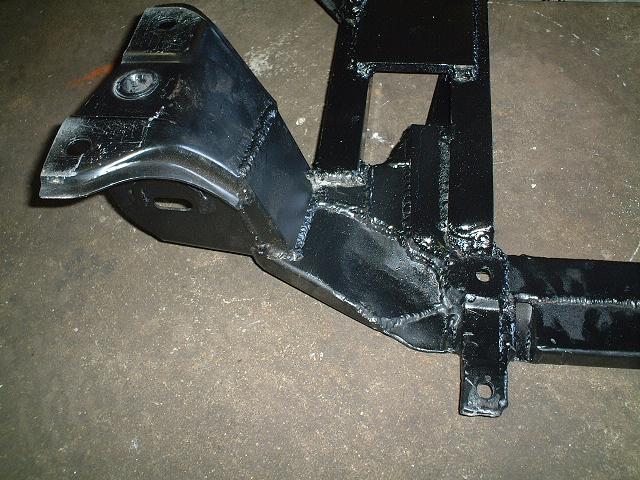

Attached Thumbnails My Overly Engineered 20b Sub Frame-subframe4.jpg
Dragon is offline
Reply
Old 08-21-2003, 06:00 PM
  #5
Senior Member

j9fd3s's Avatar

Join Date: May 2002
Location: California
Posts: 22,465
Default
thats thing looks burly, 2 more qts would be good too



mike
j9fd3s is offline
Reply
Old 08-21-2003, 07:53 PM
  #6
Super Moderator

vosko's Avatar

Join Date: Jul 2001
Location: NJ
Posts: 17,839
Default
looks great!
vosko is offline
Reply
Old 08-21-2003, 08:02 PM
  #7
Senior Member

pengaru's Avatar

Join Date: Apr 2002
Location: IL
Posts: 2,930
Default
what welder are you using for this out of curiosity?



looks pretty cool
pengaru is offline
Reply
Old 08-21-2003, 08:24 PM
  #8
Senior Member

9BASE3's Avatar

Join Date: Feb 2002
Location: Frederick MD
Posts: 6,331
Default
Damn... I love it when people fabricate stuff... Sweet ****!!!
9BASE3 is offline
Reply
Old 08-21-2003, 09:46 PM
  #9
Senior Member

rfreeman27's Avatar

Join Date: Dec 2002
Location: fredneck MD
Posts: 4,107
Default
i have my eye on a nice mig welder...then i could make cool **** like this. Good stuff dragon!
rfreeman27 is offline
Reply
Old 08-21-2003, 10:05 PM
  #10
Senior Member

Racer X's Avatar

Join Date: Sep 2002
Location: Vanderhoof,BC(Canada)
Posts: 5,542
Default
Originally Posted by rfreeman27' date='Aug 21 2003, 06:46 PM
i have my eye on a nice mig welder...then i could make cool **** like this. Good stuff dragon!
Make sure to run alot of gas on it. His welds were done using C02.I can weld like that with the welders at the shop I work for. Looks good dragon.Think theres enough welds on it yet?
Racer X is offline
Reply
