I have like a 9 pin(orange) connector and a smaller white one on the passenger side of the engine bay.What are these for?I was planning on running the T2 Harness's thru that hole.Info needed on those 2 would be nice.Thanks.



Luis



I'll get some pics tomorrow.



Raul



you just want a excuse to use the digi cam.I need a pic of the one on the passenger side of the firewall right below the VIN #



they moved the engine harness on the 84-85's to the right (passenger) side. its similar to the 81-83 harness, but they moved it



mike

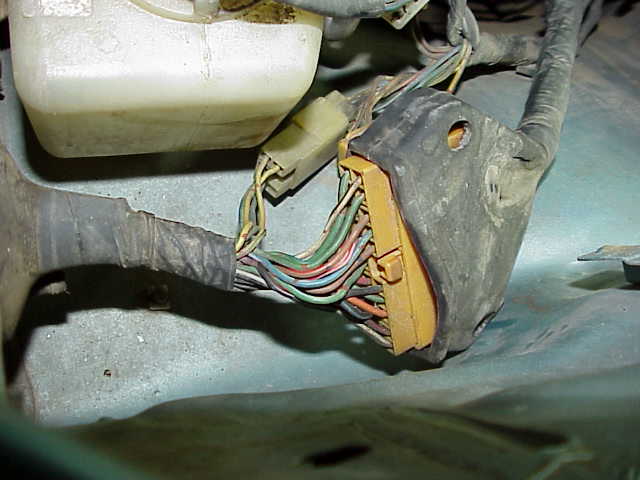

Here comes the Post *****..

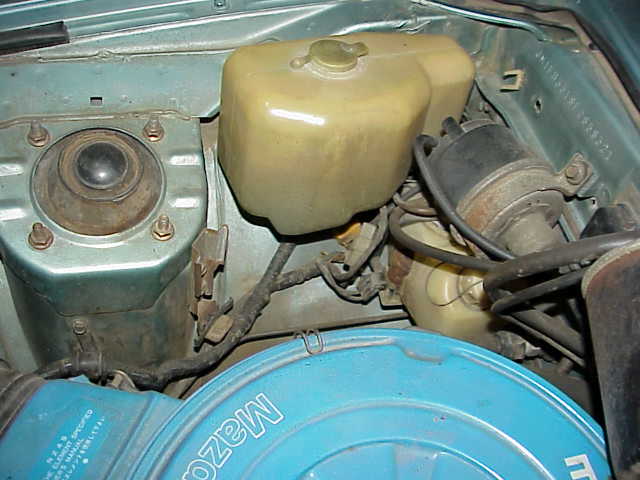

different angle

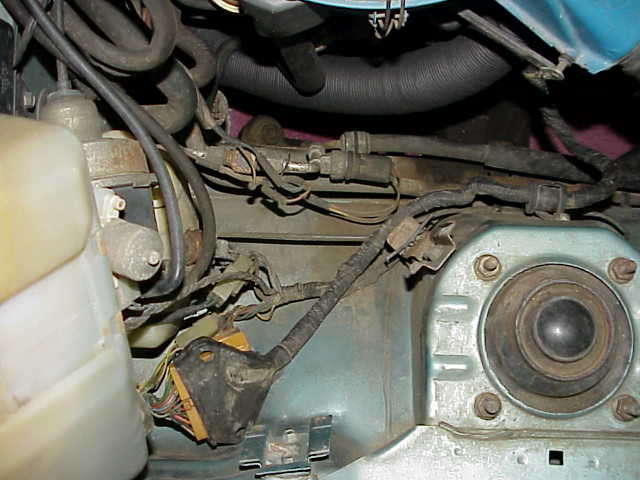

from across the car. the evap canister is pulled and set off to the side.

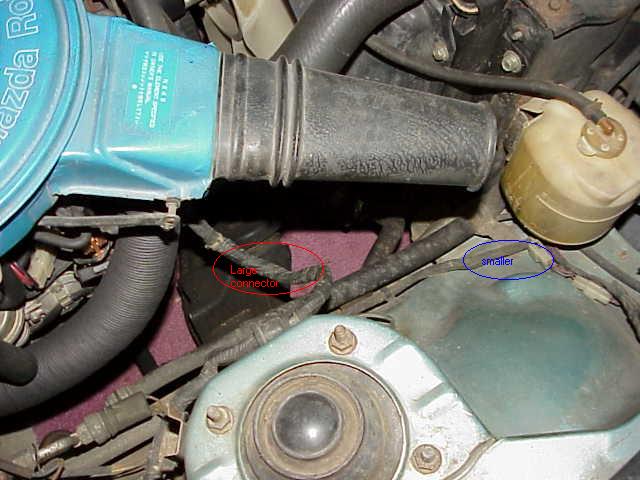

right side again, farther away. the larger connector and bundle of wires goes to

the motor



The color in my monitor is off so excuse the colors

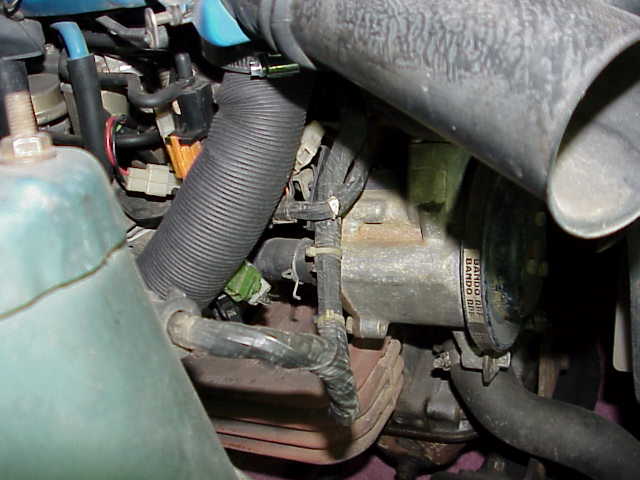

Here is where the wires take a left....( large bundle)
