NoPistons -Mazda Rx7 & Rx8 Rotary Forum

1st Generation Specific 1979-1985 Discussion

Eletrical Problems

Thread Tools

Search this Thread

Old 04-12-2003, 11:51 PM
  #1
Senior Member
Thread Starter

mikebeezie3404's Avatar

Join Date: Mar 2003
Posts: 143
Default
ok here it is im having problems with one of my ignition coils is not sparking . im not sure if i have the firing order correct. if anyone can tell me or give me a web page wit the firing orders that would help alot. 79 rx7 with 82 ignition system.





thanx
mikebeezie3404 is offline
Reply
Old 04-13-2003, 12:11 AM
  #2
Senior Member

Smog Fighter's Avatar

Join Date: Nov 2002
Location: Bakersfield, California
Posts: 569
Default
The firing order is on the Distributer cap....
Smog Fighter is offline
Reply
Old 04-13-2003, 12:13 AM
  #3
Senior Member

Smog Fighter's Avatar

Join Date: Nov 2002
Location: Bakersfield, California
Posts: 569
Default
On my car, the front coil is the trailing coil, and the rearward coil is the leading.
Smog Fighter is offline
Reply
Old 04-13-2003, 12:15 AM
  #4
Senior Member

Smog Fighter's Avatar

Join Date: Nov 2002
Location: Bakersfield, California
Posts: 569
Default

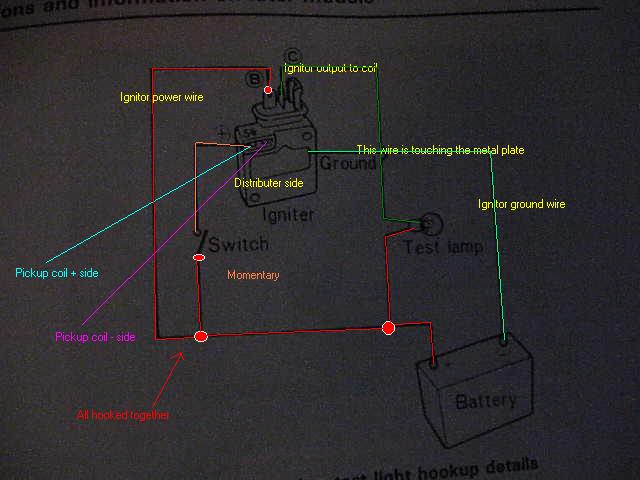

Here is a way to test the ignitor:
Attached Thumbnails Eletrical Problems-ignitor_check_diag.jpg
Smog Fighter is offline
Reply
Old 04-13-2003, 12:20 AM
  #5
Senior Member

Smog Fighter's Avatar

Join Date: Nov 2002
Location: Bakersfield, California
Posts: 569
Default

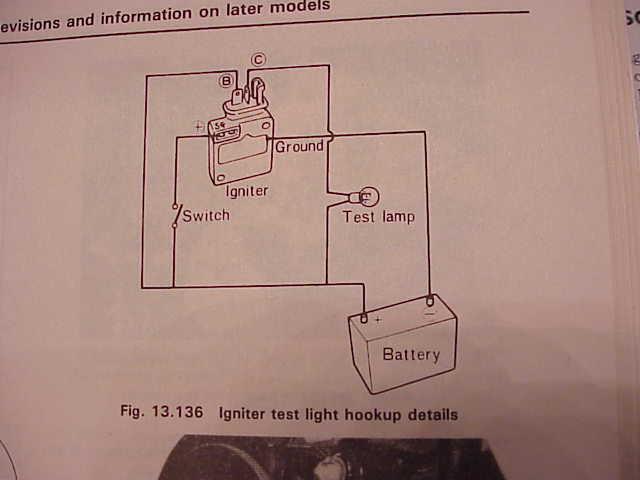

Here's a clearer view of the page:
Attached Thumbnails Eletrical Problems-mazda_ignitor_test.jpg
Smog Fighter is offline
Reply
Old 04-13-2003, 04:26 PM
  #6
Senior Member

Directfreak's Avatar

Join Date: Dec 2001
Location: Miami, FL
Posts: 401
Default
On the rotor housings it is also clearly labled.



Don't **** em up, or you could blow a seal at high RPM.
Directfreak is offline
Reply
