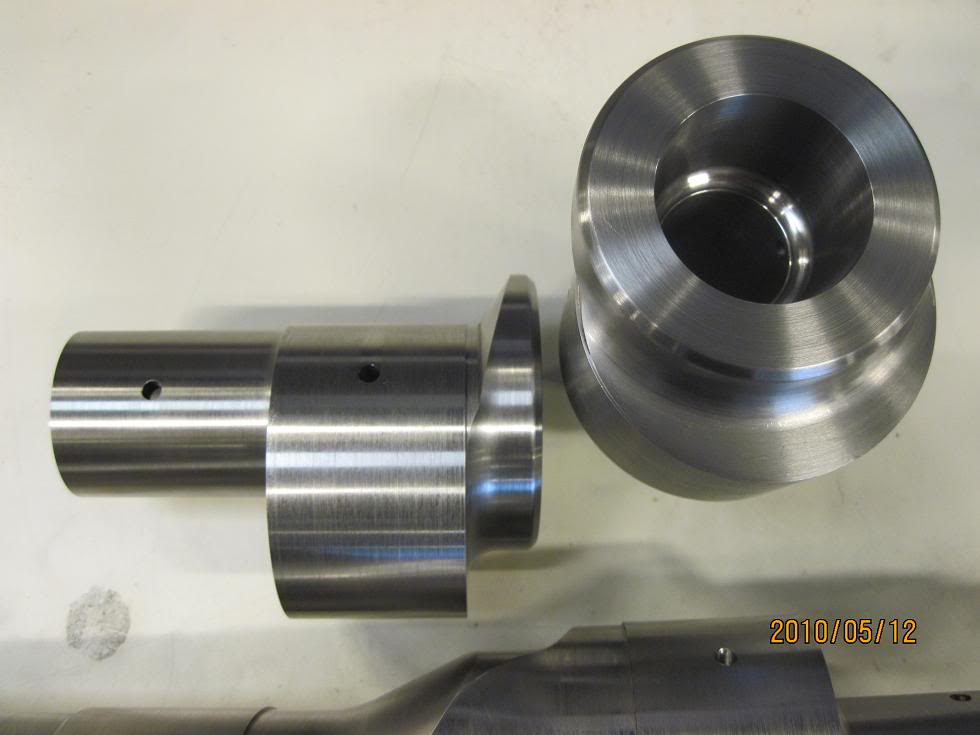

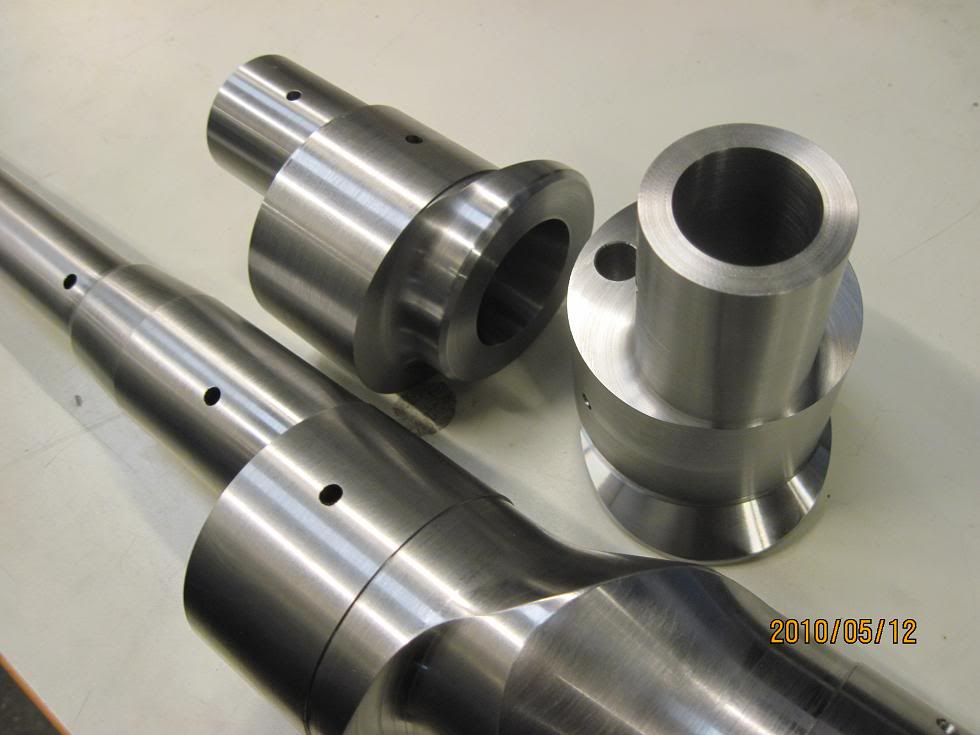

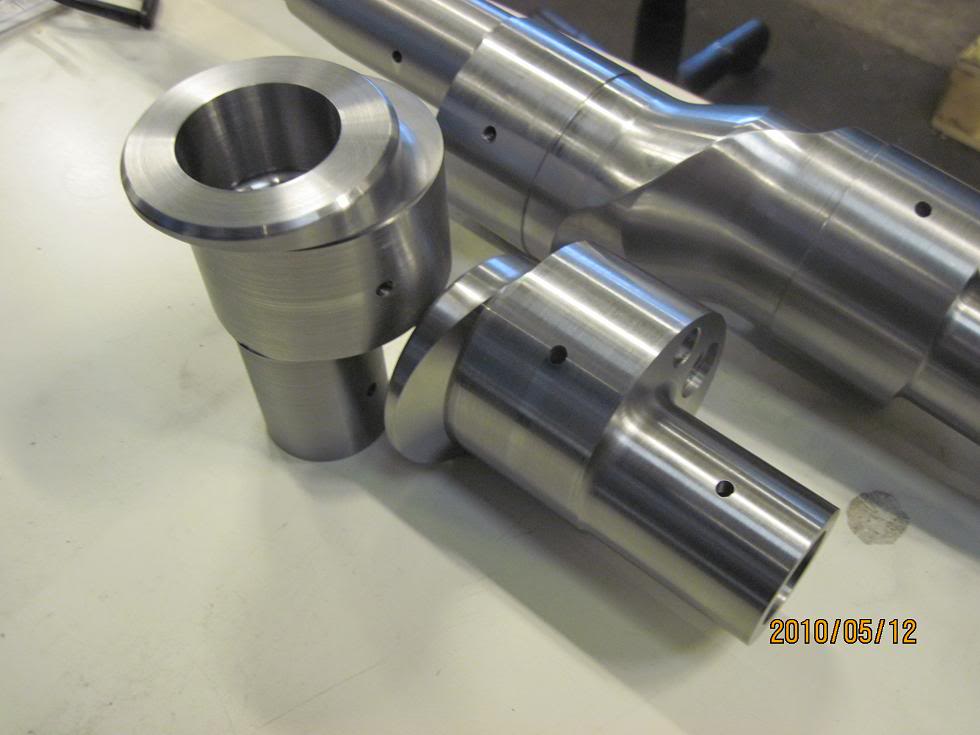

Finished the small parts in the lathe today after work. There is key-way, an oil-injector and grinding left on them only.
Thats all for now! Will start on the project now again, have bought a house, broken som bones ona track-day with my CBR900 and so on...
But now I hopefully will have som time!
This is a youtube-movie of the start in the lathe
http://www.youtube.com/watch?v=aTiGFqly-CI
Thats all for now! Will start on the project now again, have bought a house, broken som bones ona track-day with my CBR900 and so on...
But now I hopefully will have som time!
This is a youtube-movie of the start in the lathe
http://www.youtube.com/watch?v=aTiGFqly-CI
10-27-2010, 11:37 PM
#12
Senior Member
Thread Starter
Join Date: Sep 2003
Posts: 229
Almost forgott!

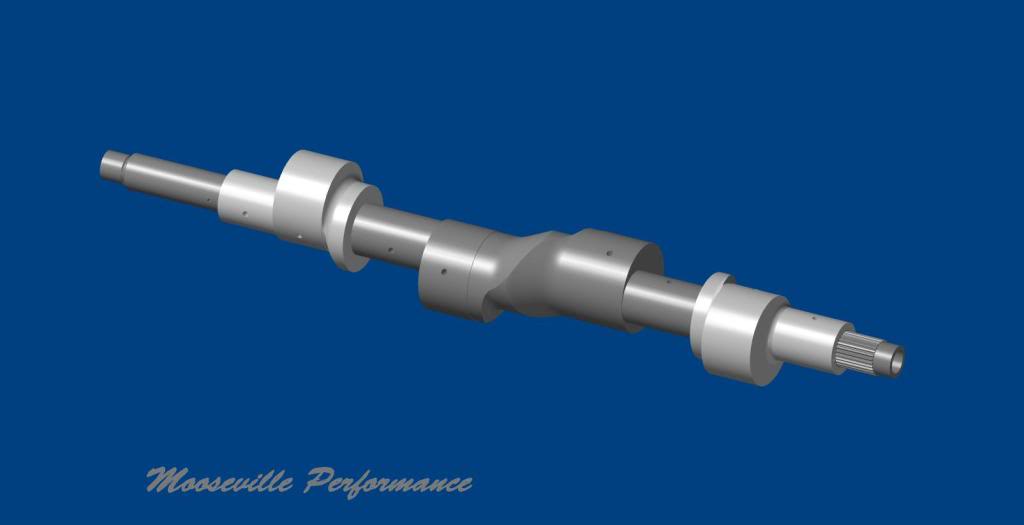

I have calculated and made an choice of involute-splines in the rear this week. Have only CAD-pics on it, but maybe you like that to
And this wolvo-project have so much more in chassi and suspension to show. But that will be in another thread I suspose...
I have calculated and made an choice of involute-splines in the rear this week. Have only CAD-pics on it, but maybe you like that to
And this wolvo-project have so much more in chassi and suspension to show. But that will be in another thread I suspose...
10-28-2010, 01:50 AM
#14
Senior Member
Join Date: Mar 2003
Location: Disclaimer: posts made after 11AM are most likely alcohol induced. Please disregard unless very funn
Posts: 2,436
i've seen some cool builds over the years... but this is one of the coolest builds i've seen. PLEASE keep up the good work and post as many pics as you can.
10-29-2010, 06:17 PM
#17
Administrator
Join Date: Jul 2001
Location: Stuart, FL
Posts: 24,416
This changes the entire concept of "build".
Very admirable, you will have an amazing understanding of the engine when you are done.
10-31-2010, 03:42 PM
#18
Senior Member
Thread Starter
Join Date: Sep 2003
Posts: 229
11-01-2010, 12:43 AM
#20
Senior Member
Thread Starter
Join Date: Sep 2003
Posts: 229
Very important for me is that you all understand that I'm not an company or working in a Speedshop. I'm working with CNC-mill, and have the opportunity from my boss to use the machines at nights and weekends for private projects.
The whole project are payed with own money, no sponsors or gifts
The whole concept are my own drawings. Got bored searching for any hints on the Internet and all of our forums about 4rotor. Decided to use MasterCam X4, and Inventor to draw the shaft my self
Therefore I don't can guarantee that it works
The complete shaft will cost about 10K SEK, that is about 1400 USD today
Regards
Tegheim - Mooseville Performance
