Post YOUR single turbo setup!
12-04-2008, 01:17 AM
#161
Junior Member
Join Date: Mar 2008
Location: Charlotte NC
Posts: 22
Originally Posted by barely street legal rotary12a' post='70910' date='Oct 9 2002, 11:30 PM
it's a blow through system the gas runs thru the turbo it a ray jay setup p3 turbo same thing as garret it's old school setup there was one at nopi runnin 10's but easy to blow up to and it goin to be hard to compress air into carb but it's a bad setup i got it for 800.00 sweet have done alot of work to it got a pic of it when i bought it look bad :rice:
I am surprised no one has said anything. What you described is a draw through set up. The carb pulls the air in and mixes it with fuel, then it goes into the turbo, compressed, and into the engine.
Blow through is exactly that, it blows through. Air goes into the turbo, then through an intercooler, and then through a carburetor hat and into the carb. You will need to boost prep the carburetor, things like removing and sealing the choke, filling the floats or getting brass floats, etc.
Blow through has better response and higher levels of achieveable HP, but draw through is much easier to make. Old school.
11-02-2009, 11:28 AM
#162
Senior Member
Join Date: Nov 2009
Location: peru, IN
Posts: 1,833

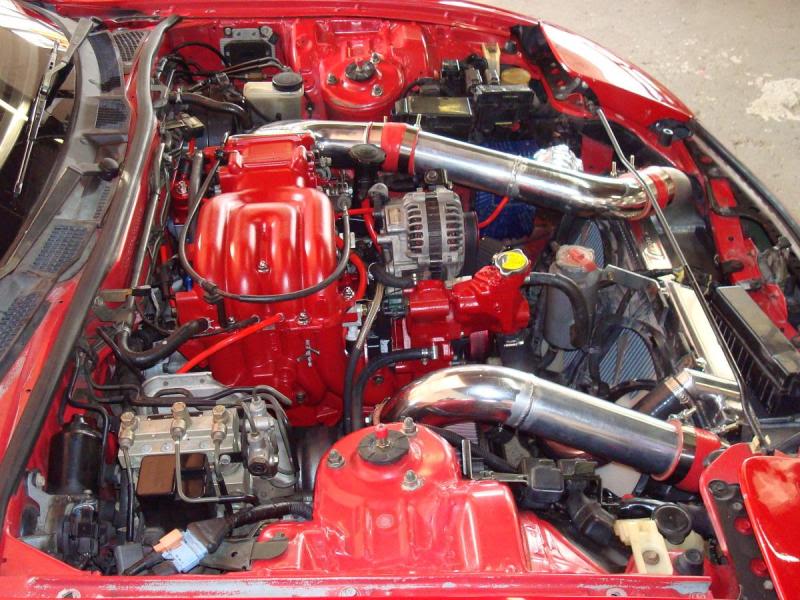

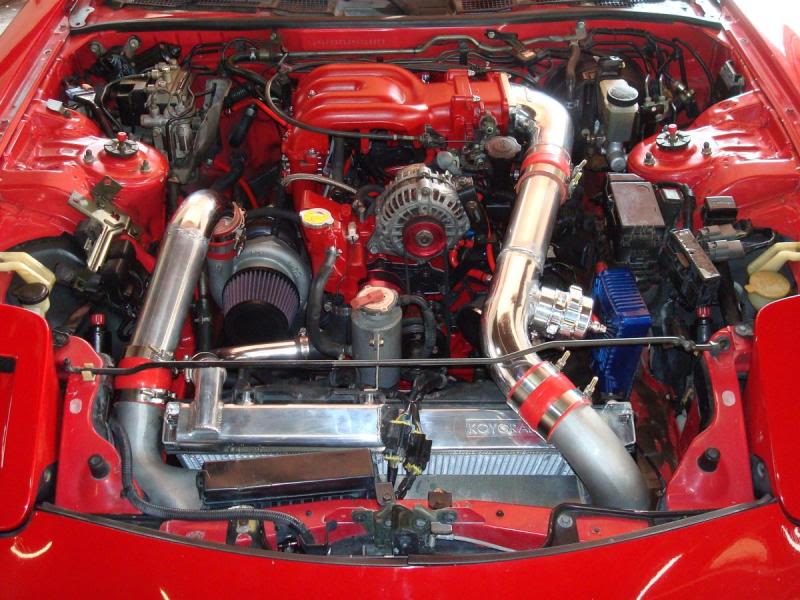

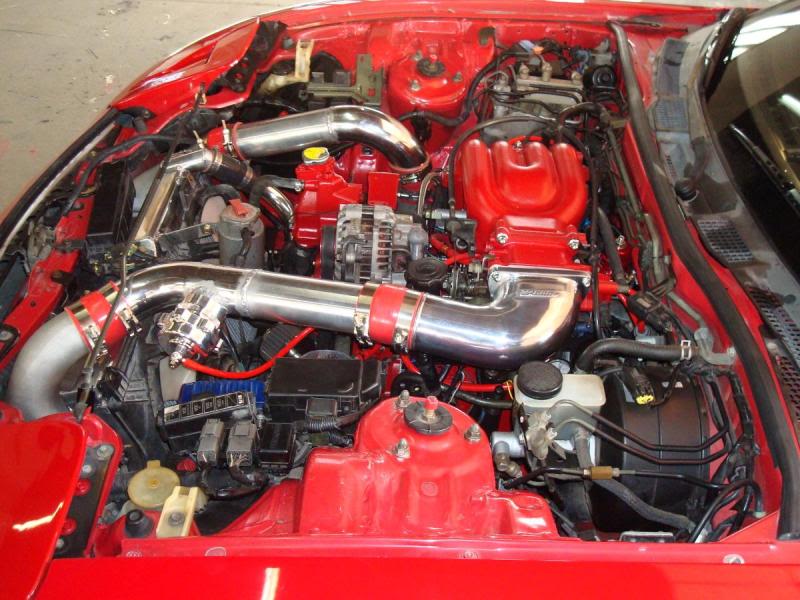

apexi power fc GT35R, not sure what boost it'll be running
HKS cast manifold
TIAL 50mm BOV
850 primaries, 1600 secondaries and a walboro 255 pump
unknown make massive FMIC(right in front of radiator you can kinda see it in the pic prior to rebuild)
tial 44mm wastegate
finished product
just waiting on the trans to be done being rebuilt
HKS cast manifold
TIAL 50mm BOV
850 primaries, 1600 secondaries and a walboro 255 pump
unknown make massive FMIC(right in front of radiator you can kinda see it in the pic prior to rebuild)
tial 44mm wastegate
finished product
12-14-2011, 06:50 PM
#168
Senior Member
Join Date: Mar 2005
Location: Reno , NV
Posts: 168
AEM EMS
GT3582R .82 a/r 28psi at 4700ft/ changed to gt4088 1.06 hotside
megan racing manifold/ changed to doc race
Tial 44
1680/550 changed to 1680/id1000
Bosch 044 changed to bosch 044 feeding a1000
spearco 26x18x3.5
stock coils/msd6a/msd wires with 10.5s
(old setup)
Top Gun Raceway Fallon,NV
4700ft
12.2@121
2.1 60ft
GT3582R .82 a/r 28psi at 4700ft/ changed to gt4088 1.06 hotside
megan racing manifold/ changed to doc race
Tial 44
1680/550 changed to 1680/id1000
Bosch 044 changed to bosch 044 feeding a1000
spearco 26x18x3.5
stock coils/msd6a/msd wires with 10.5s
(old setup)
Top Gun Raceway Fallon,NV
4700ft
12.2@121
2.1 60ft
03-15-2012, 04:32 PM
#169
Junior Member
Join Date: Jan 2010
Location: Palm Beach, Fl
Posts: 3
Re: Post YOUR single turbo setup!

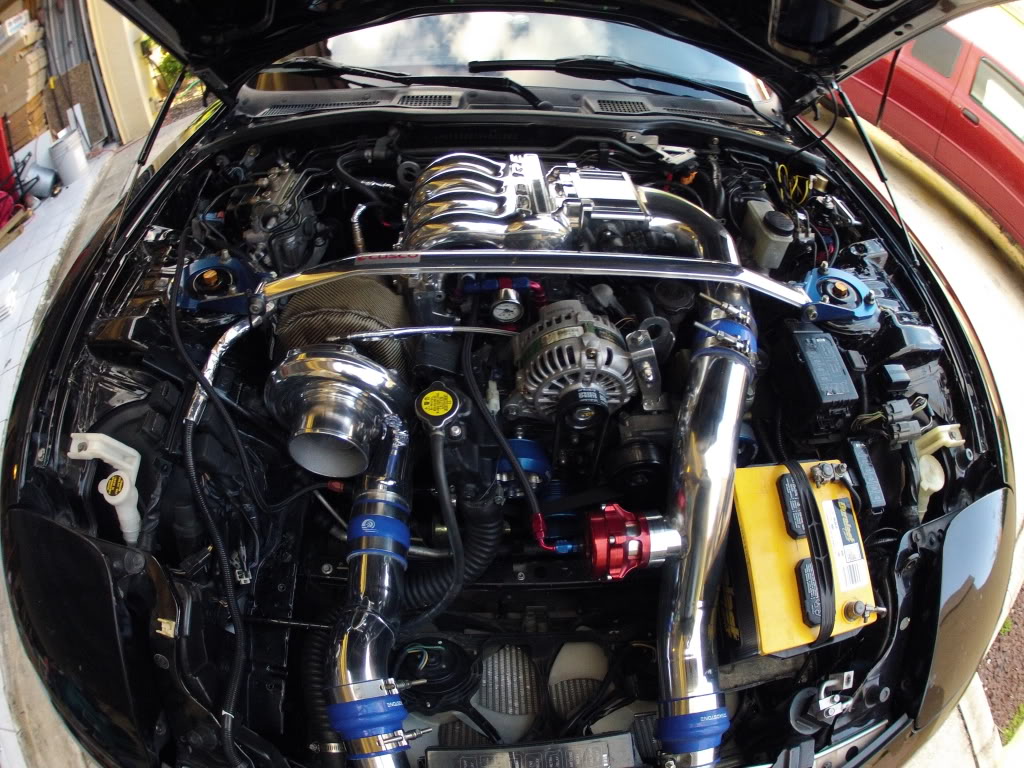

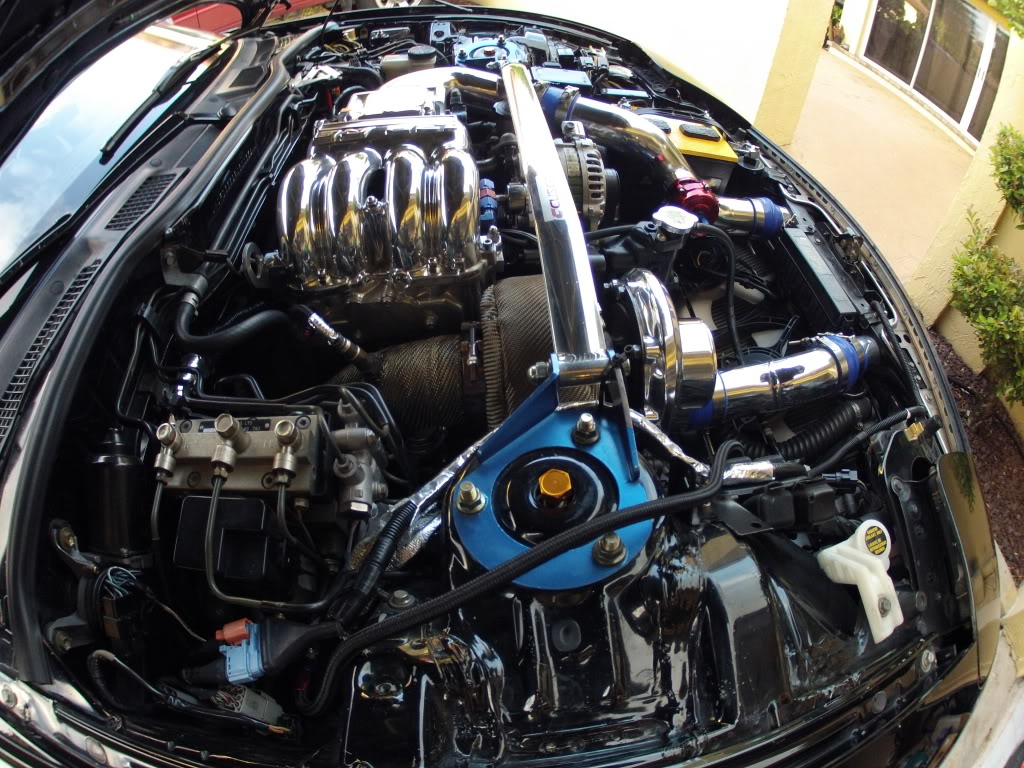

1994 fd
13b 3mm seals medium street port
custom dual tial wastegate exhaust manifold
borg warner s366 turbo
id 1000/2200 injectors/ kg fuel rails/ 8 an fuel lines
dual 340lhp aeromotive stealth pumps
power fc ecu.
13b 3mm seals medium street port
custom dual tial wastegate exhaust manifold
borg warner s366 turbo
id 1000/2200 injectors/ kg fuel rails/ 8 an fuel lines
dual 340lhp aeromotive stealth pumps
power fc ecu.
08-15-2013, 08:01 AM
#170
Member
Join Date: Jan 2012
Location: MN
Posts: 32
Re: Post YOUR single turbo setup!

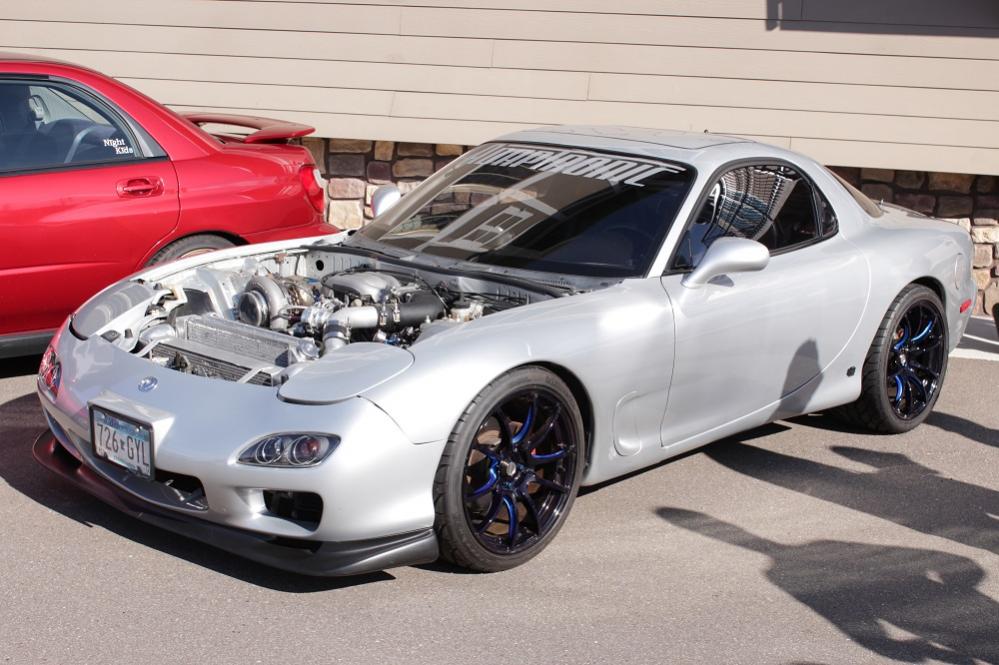

GT4202 w/ Tial 1.0 Rear
TS Inconel HeatShields( downpipe, turbine housing, turbo manifold)
ID2000s x 4 currently( moving to 6 soon)
Adaptronic E440D w/ innovative MTXL & Dual EGTs
Half Bridge
AEM smart coils
4" exhaust
Currently @ 19psi, moving to 4 bar soon.
TS Inconel HeatShields( downpipe, turbine housing, turbo manifold)
ID2000s x 4 currently( moving to 6 soon)
Adaptronic E440D w/ innovative MTXL & Dual EGTs
Half Bridge
AEM smart coils
4" exhaust
Currently @ 19psi, moving to 4 bar soon.
